Transceiver Controls - Front
Transceiver Controls
3-3
Buttons
B1
B2
EASI, 3
5,6
IntelliVue TRx
+
M4841A

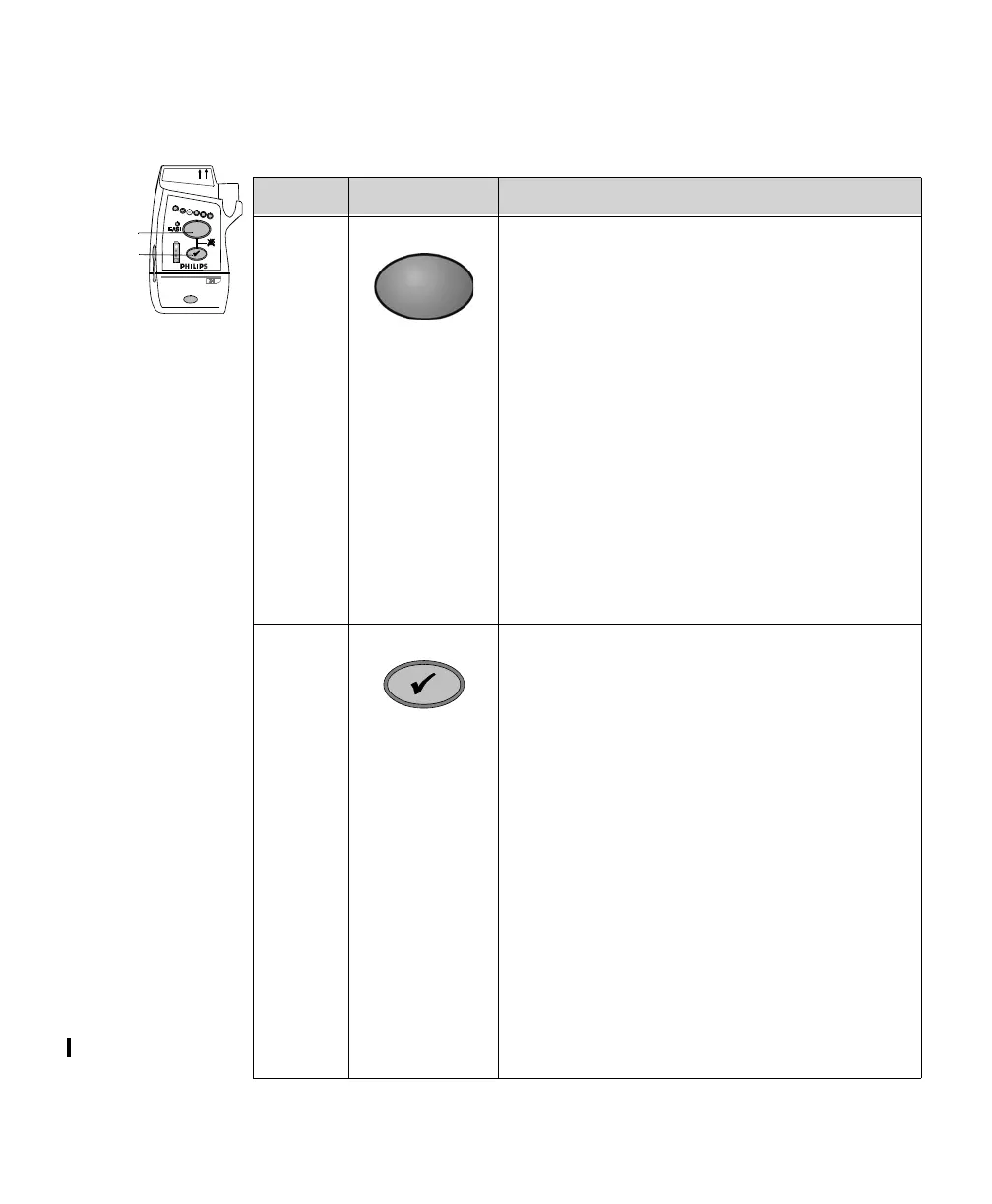

Callout Button Definition
B1 Telemetry Button
• Depending on configuration, directs the
Information Center to generate a Nurse Call
alarm, remote recording, both Nurse Call
alarm and recording, or none. See
“Telemetry Functions at the Information
Center” on page 9-2.
Note—Delayed recordings generated by the
Telemetry button are stored in Alarm
Review at the Information Center.
• When pressed simultaneously with the
Check button, turns Alarm Suspend/Pause
on/off (not when connected to TeleMon or
networked IntelliVue MP5 Patient
Monitor). See “Suspending/Pausing
Alarms” on page 5-2.
B2 Check Button
• Initiates a Status Check of the transceiver.
See “Status Check” on page 4-12.
• Resumes monitoring after Standby. See
“Standby Mode” on page 4-4
• Indicates association with the Information
Center (single beep). See “Audible Tones”
on page 3-10.
• When pressed simultaneously with the
Telemetry button, turns Alarm Suspend/
Pause on/off (if configured and not when
connected to TeleMon or networked
IntelliVue MP5 Patient Monitor). See
“Suspending/Pausing Alarms” on page 5-2.
• Silences the Find Device tone. See
“Locating the Transceiver (Find Device)”
on page 9-3.
• Initiates the Short-Range Radio assignment.
