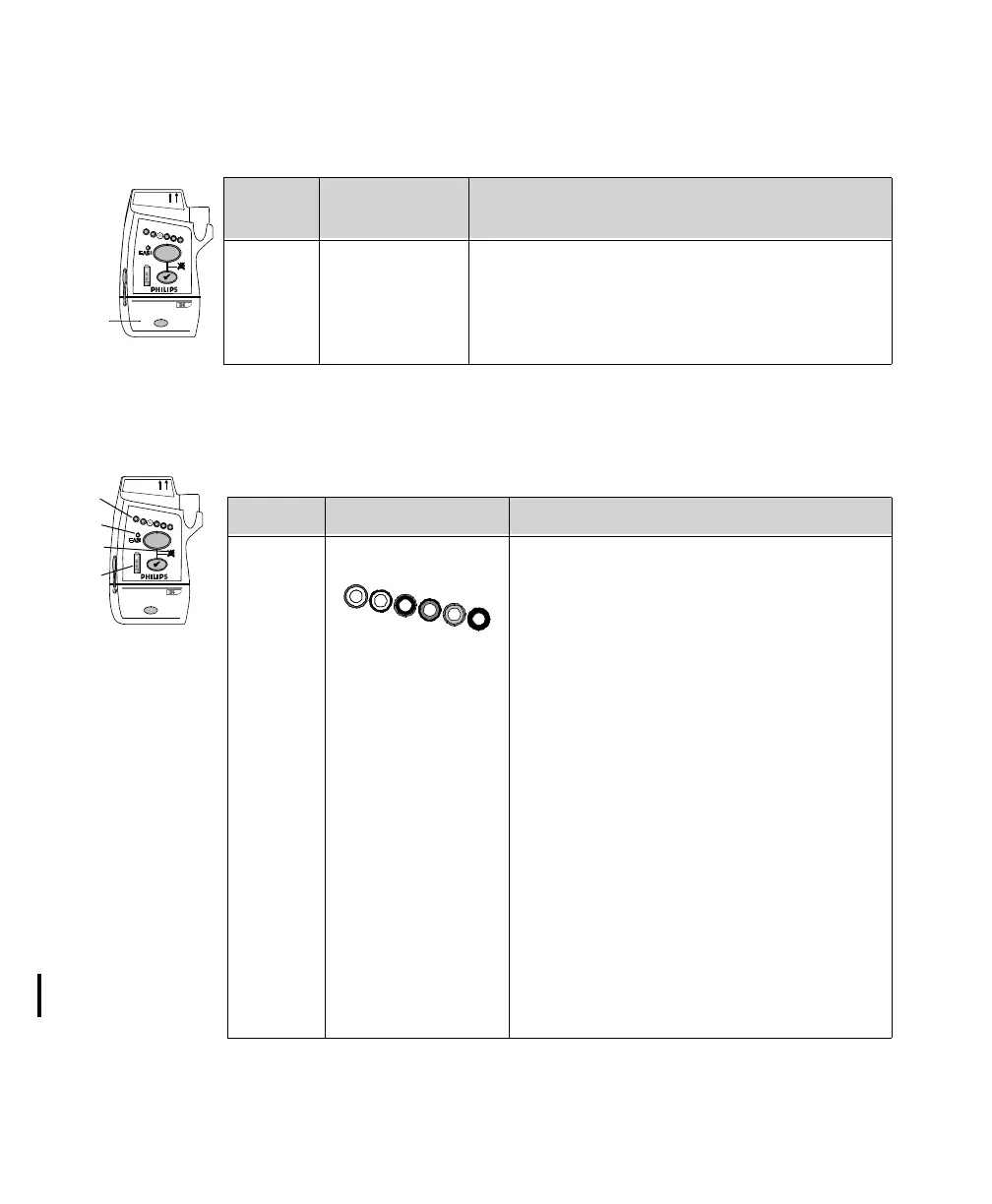

Transceiver Controls - Front
3-4 Transceiver Controls
Power On/
Off
Indicators
O1
EASI, 3
5,6
IntelliVue TRx
+
M4841A
Callout
Battery Door
to Access
Definition
O1 Power On/Off Power On/Off
Insertion of batteries turns transceiver power on;
removal of batteries turns power off. See “Turning
the Transceiver On/Off” on page 4-2.
EASI, 3
5,6
IntelliVue TRx
+
M4841A
I 3
I 4
I 2
I 1
Callout Indicator Definition
I 1 Lead Indicator
• Illuminates momentarily during
leadset insertion to indicate attached
leads.
• Illuminates when Check button is
pressed to indicate attached leads.
• During a Leads Off condition,
illuminates to indicate the lead(s) that
need to be reapplied. Reference lead
indicator only on indicates all leads are
off.
• Momentarily illuminates all lead
indicator lights, indicating the
transceiver has no Equipment Label
assigned. Accompanied by “Unlabeled
Device” tone. See “Label Assignment
for Replacement Transceiver” on page
11-2.
• Illuminates after successful Short-
Range Radio assigment.
