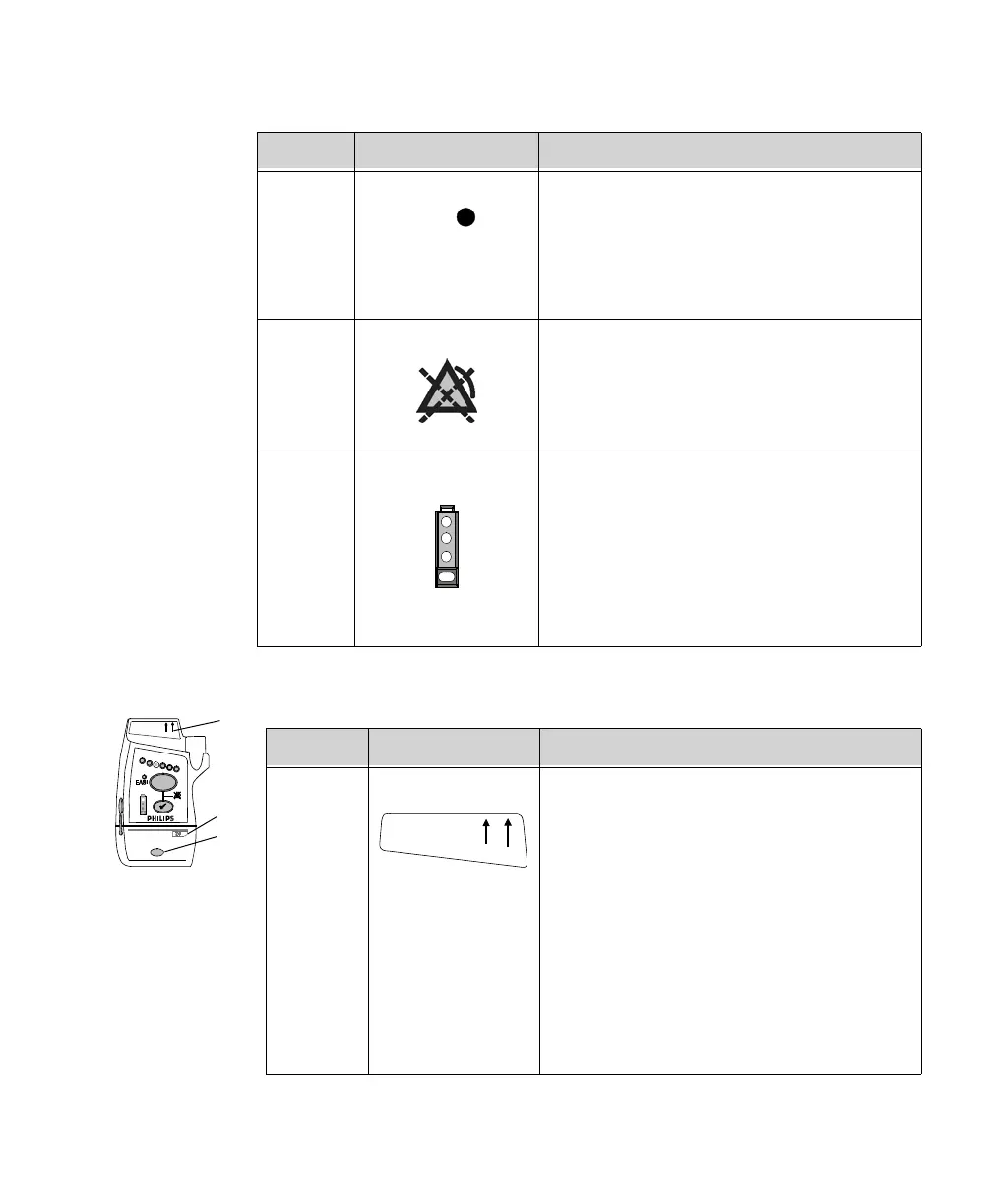

Transceiver Controls - Front
Transceiver Controls
3-5
Labels
I 2 EASI Indicator
• Illuminates momentarily upon
insertion of leadset in EASI position.
• Illuminates when Check button is
pressed if EASI is in use.
I 3 Alarms Suspend/Pause Indicator
Illuminates during alarm pause period
initiated at transceiver, Information Center,
or TeleMon.
I 4 Battery Gauge
Illuminates when the Check button is
pressed, indicating the amount of power
remaining in the batteries.
Note—Valid only for recommended battery
type. See “Checking the Battery Power
Level” on page 4-17.
Callout Indicator Definition
EASI
EASI, 3
5,6
IntelliVue TRx
+
M4841A
L1
L2
L3
Callout Label Definition
L1 Leadset Insertion Guide
Assists in aligning the ECG cable for
different leadsets. See “Connecting the ECG
Cable” on page 6-21.
Note—If your unit uses only one monitoring
configuration, the transceiver may have
special alignment guides that allow only one
leadset insertion position.
Warning—Alignment guides may present a
choking hazard. Handle with appropriate
care.
EASI, 3
IntelliVue TRx
5,6
TRx4841A
