Positioning ECG Electrodes
6-14 ECG Monitoring
5-Wire
Placement
(Standard
Mode)

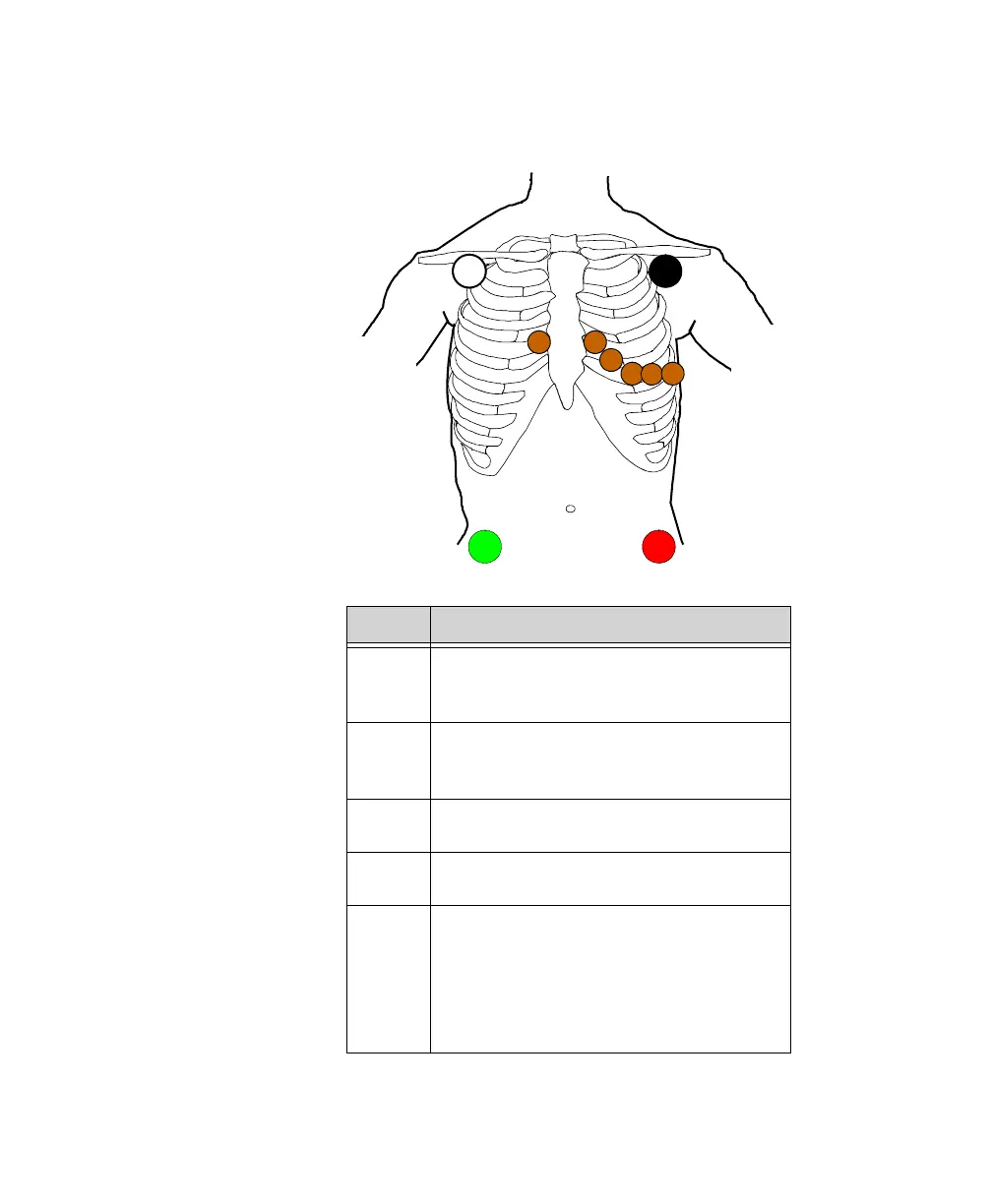

Lead Placement
RA directly below the clavicle and near the
right shoulder
LA directly below the clavicle and near the
left shoulder
LL on the left lower abdomen
RL on the right lower abdomen
V on the chest, the position depends on your
required lead selection. The typical
position is V1, although this may vary
according based on your hospital’s
protocol.
V2
V3
V4
V5
V6
V1
RA
LA
RL
LL
