DISP Assy
JOGR Assy
JOGR Assy
JOGT Assy

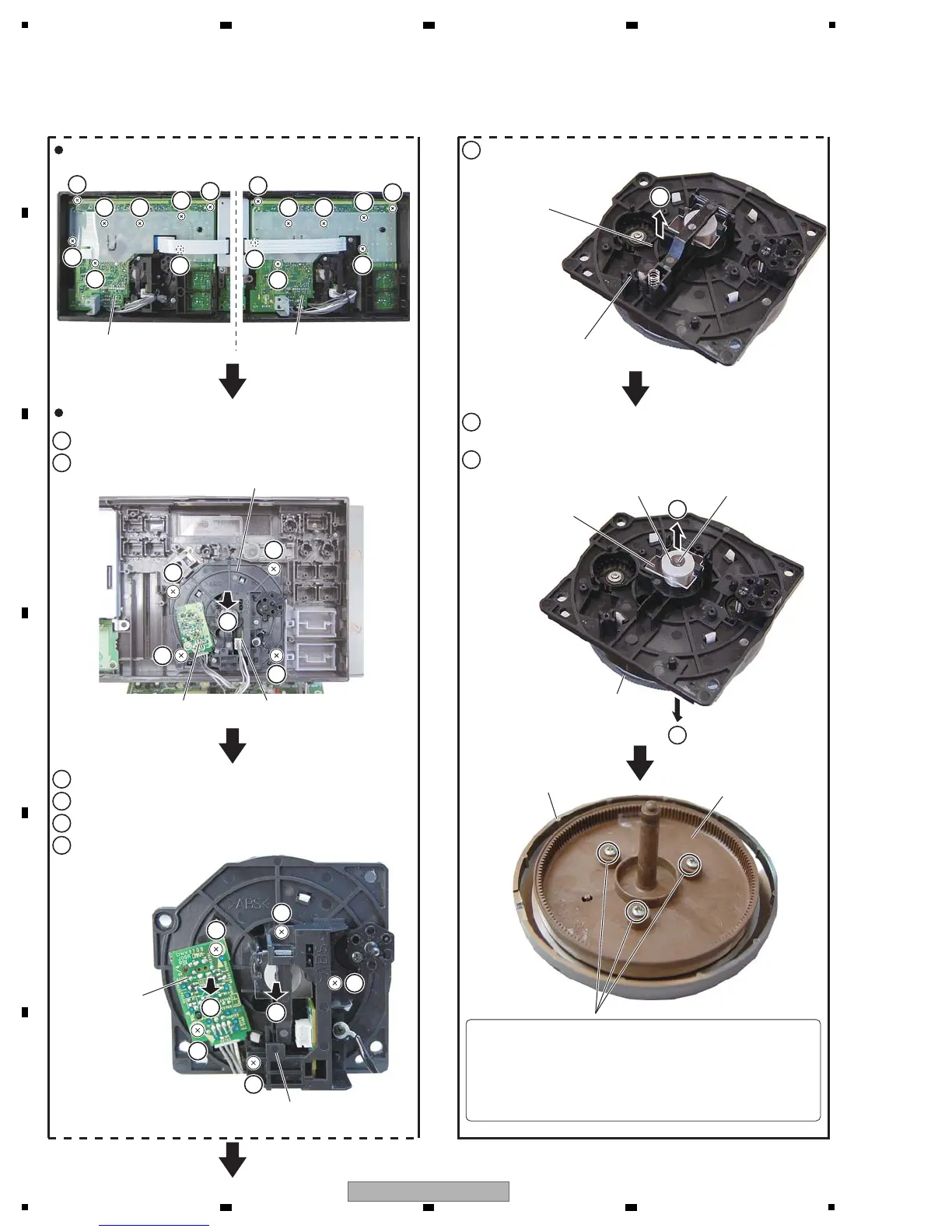

JOG Section
Be sure not to lose lever spring.
JOG lever
Washer
JOG dial
JOG dial
JOG smoother
JOG smoother
plate
JOG shaft
DISP Assy
Lever holder
Remove the four screws.
1
Remove the JOG Section.
2
Remove the two screws.
3
Remove the JOGR Assy.
4
Remove the three screws.
5
Remove the lever holder.
6
Remove the JOG Lever.
7
Remove the washer, JOG smoother and JOG smoother
plate.
8
Remove the JOG dial.
9
1
1
3
5
5
5
3
1
1
1
4
4
5 6
7
7
8
9
8
5 6
7
8
2
2
3
3
1
Tightening sequence for the screws
when reassembling
JOG Section
2
4
6
Note: If you wish to replace only the JOG dial (exterior part)
because of scratches, etc., you can replace it without
removing the PC boards and JOG Assy. Remove the
three fixing screws that secure the JOG dial, by
accessing through the hole indicated with an asterisk
on the previous page.
