Pioneer MEP-7000 Service Manual

44
MEP-7000
1
2 3 4
A
B
C
D
E
F
1
2 3 4

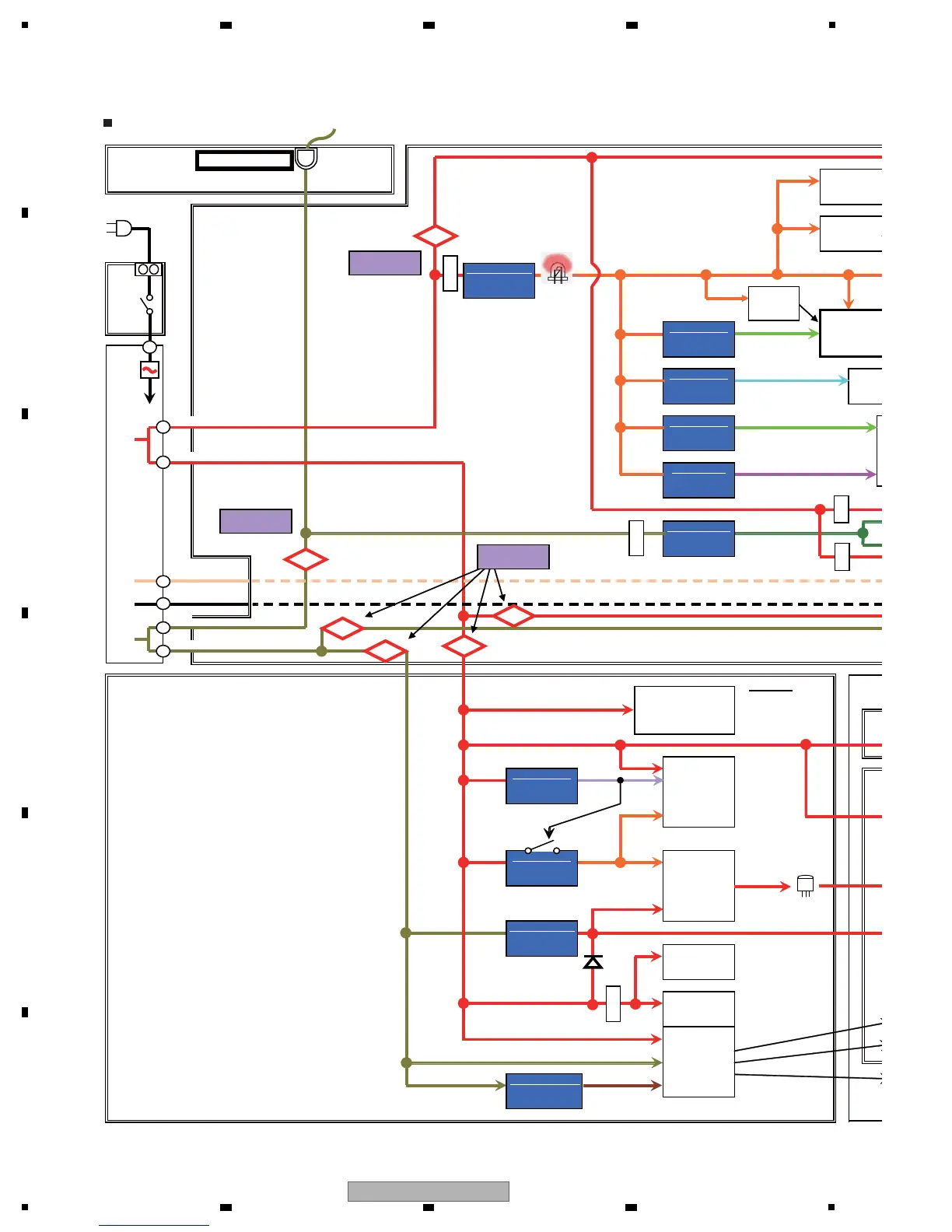

SJACK ASS'Y
SMAIN ASS'Y
V+8ND
AC Power Cord
1.75A
POWER
INDICATOR
ACIN
V+3R3D
Power SW
(Push type)
V+1R2BD
Variable output type
V+1R25DD
Variable output type
5V±5% V+5DI V+1R2FD
5V±5% V+5SD
Variable output type
V+2R5FD
V+8ND
V+5D
V+8ND
V+5A
1.0A
+18V±10% V+18A
-18V±10% V-18A
1.25A
8V±10% V+8D
1.25A 1.25A
8V±10% V+8D 1.25A
SRV1 ASS'Y
IC SPEC
V+8D
V+5SD 5V±10%
SL
5V±10%
D1R5V
TM
1.5V±10%
Variable output type
3.3V±6%
3.3V±9%
Built-in reset function
5.0V±10%
V+8D
OEIC5V
A5V
4.3 ~ 6.0V 4.3 ~ 14V
6R5V
4.3 ~ 14V
SERVO of DVD/CD DRIVE 1 DVD
Variable output type
D3R3V,A3R3V
Tr
USB HU
USB2504A
IC403
USB CONTR
TDOTG242-
IC402
SRV Flash ROM
DYW1769-x/J
(SST39SF010A70-4CWH)
IC904
AU
DSPC
SODC
MN103S71F
IC106
NJM78M05DL1
5V Reg IC555
±x% 100mA
FEP
AN22022A
IC102
BD00KA5WFP
1.25V Reg
IC503
±2% 30mA
SRV DRIVER
BD7956FS
IC100
Switching Power Supply Unit (SW-PSU)
DWR1440-A
BD00KA5WFP
1.2V Reg IC204
±2% 500mA
BD00KA5WFP
1.2V Reg IC305
±2% 500mA
BH25FB1WG
2.5V Reg IC304
±1% 150mA
South C
ADSP-BF531S
(Blackfin
IC202
BD00KA5WFP
1.5V Reg
±2% 500mA
MM1478DFBE
3.3V Reg
±2% 400mA
NJM2880U1-05
5V Reg
±1% 400mA
PQ200WNA1ZPH
6.5V Reg IC109
±2% 1A
BA33DD0WHFP
3.3V Reg IC356
±1% 2A
DEK1097-x
Indication "H"
DEK1100-x
Indication "L"
BUFFER
NJU7016M
IC108
SWITCH
TC7W53FU
IC110
COIL
P102
P101
P105
P103
P104
P106
DEK1098-x
Indication "J"
5A
Remote Control
CPU RST
BU4230G
IC200
COIL
COIL
COIL
COIL
DRIVE UNIT

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
