Piper Comanche PA-24 User Manual

04/01/09 IV - STRUCTURES
1F5
PIPER COMANCHE SERVICE MANUAL

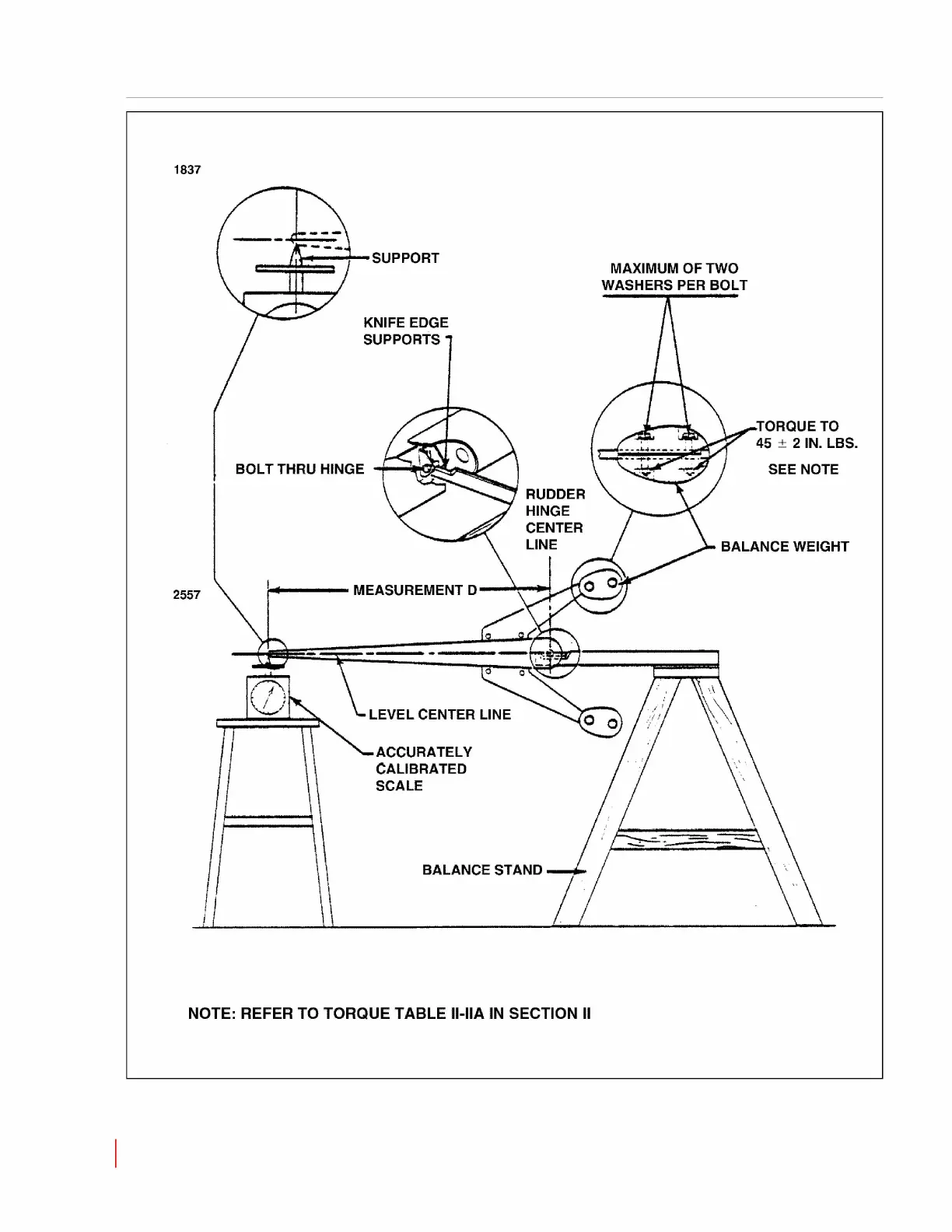

Figure 4-7e. Checking and Balancing Rudder
1837
2557
===*~;-j-SUPPORT
BOLT THRU HINGE -;- ...... IIIGl~ ...... /J,.tI'
;.....--- MEASUREMENT D-~""""'"
LEVEL CENTER LINE
ACCURATELY
CALIBRATED
SCALE
BALANCE STAND
NOTE: REFER TO TORQUE TABLE II-IIA IN SECTION II
MAXIMUM OF TWO
WASHERS PER BOLT
SEE NOTE
BALANCE WEIGHT
