PIPER COMANCHE SERVICE MANUAL

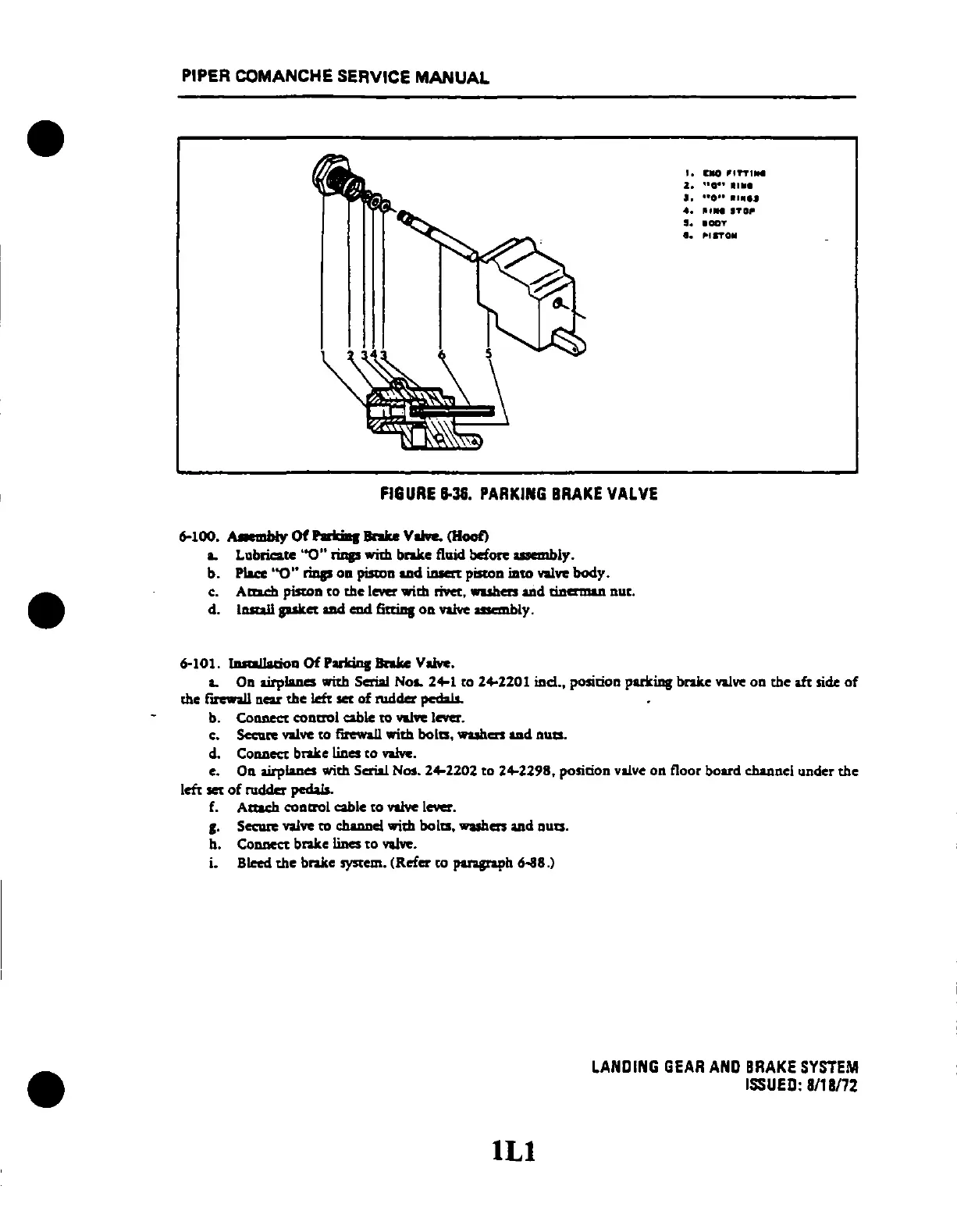

FIGURE 1-3&. PARKING BRAKE VALVE
6-100 • ."-=wbty Of l'IrIdq Bnke Valve. (Hoof)
L Lubricate '"0" riIIp witb brake fluid before assembly.
b. Place '"0'" riIIp oa pistoa ... d iDIert pistoa iato valve body.
c. Aaacb pisma to the 1_ wicb rivet, wuhen ... d tiDcmwt nut.
d. I......u. pet IUId ead fiaiat oa valYe assembly.
6-101. lamu'ma Of Parldat Bnke Valve.
I. 1110 ",nu ..
1. "0" .llIe
I. "0" ......
•• II ... ITOI'
I •• 00y
eo ,"IITOII
L Oa airplaacs witb Serial NOL 24-1 to 24-2201 iad., position parking brake valve oa the aft side of
<be flleWall aear the left set of rwlcIcr pedals.
b. ColIJICCt coaaol cable to valve 1_.
c. Secure valve to firewall with bola, wuhen ... d nua.
eI. CODllect brake liacs to valve.
e. Oa airplanes with Serial Nos. 24-2202 to 24-2298, position valve on floor board cbanael under the
left set of ruclclcr pedals.
f. Aaacb coacrol cable to valye lever.
g. Secure valve
to cbaDlIci wicb bola, wuhen and aua.
b. COIIJICCt brake liacs to valve.
i. Bleed the brake system. (Refer to pangrapb 6-88.)
ILl
LANDING GEAR AND BRAKE SYSTEM
ISSUED: 8118172
