PIPER COMANCHE SERVICE MANUAL
04/01/09 V - SURFACE CONTROLS
1G1

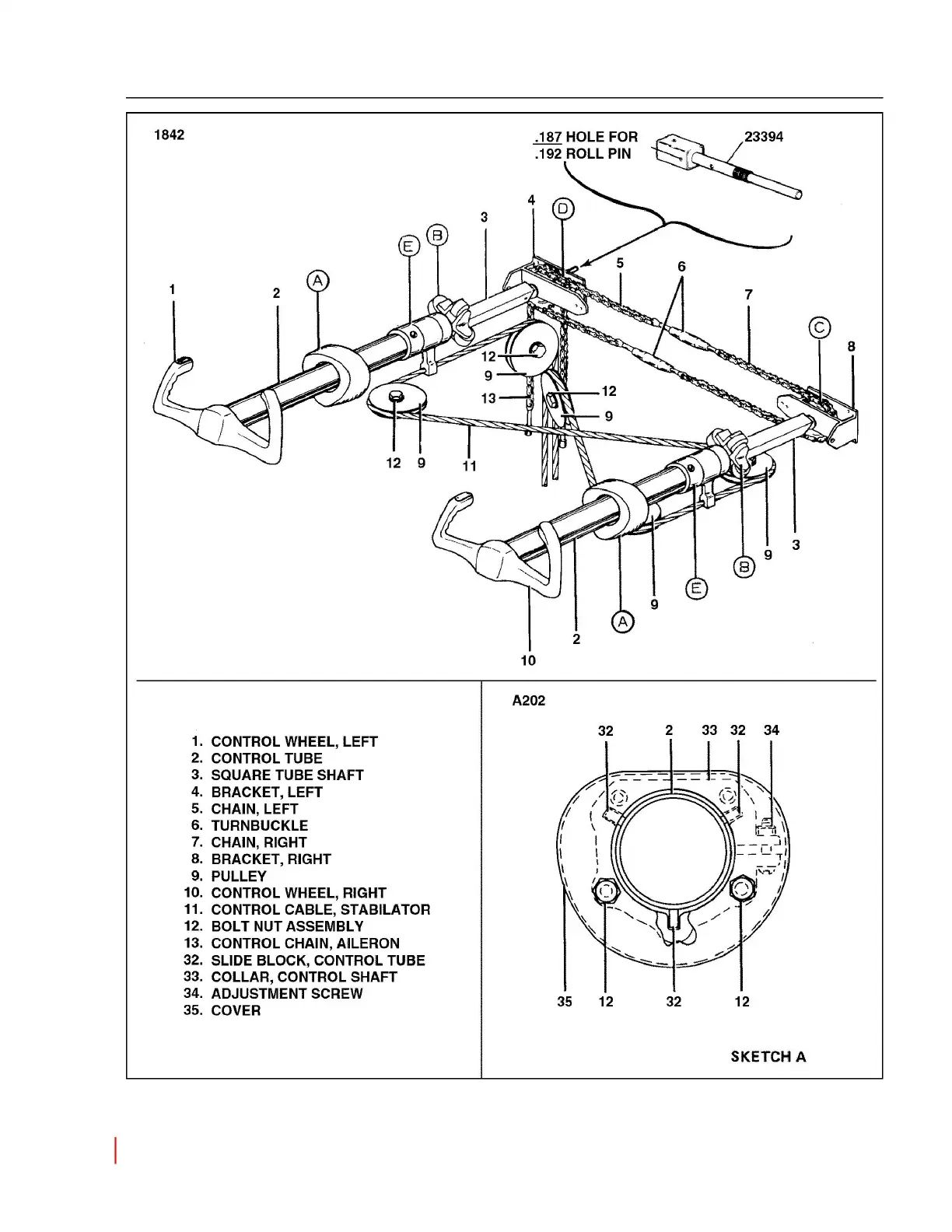

Figure 5-5. Control Column Installation
1842
1. CONTROL WHEEL, LEFT
2. CONTROL TUBE
3. SQUARE TUBE SHAFT
4. BRACKET, LEFT
5. CHAIN, LEFT
6. TURNBUCKLE
7. CHAIN, RIGHT
8. BRACKET, RIGHT
9. PULLEY
10. CONTROL WHEEL, RIGHT
11. CONTROL CABLE, STABILATOR
12. BOLT NUT ASSEMBLY
13. CONTROL CHAIN, AILERON
32. SLIDE BLOCK, CONTROL TUBE
33. COLLAR, CONTROL SHAFT
34. ADJUSTMENT SCREW
35. COVER
.187 HOLE FOR
.192 ROLL PIN
10
A202
32
35 12
2 33 32 34
32 12
SKETCH A
