PIPER COMANCHE SERVICE MANUAL
04/01/09 VIIC - POWER PLANT
(PA-24-260 TURBO)
2G25

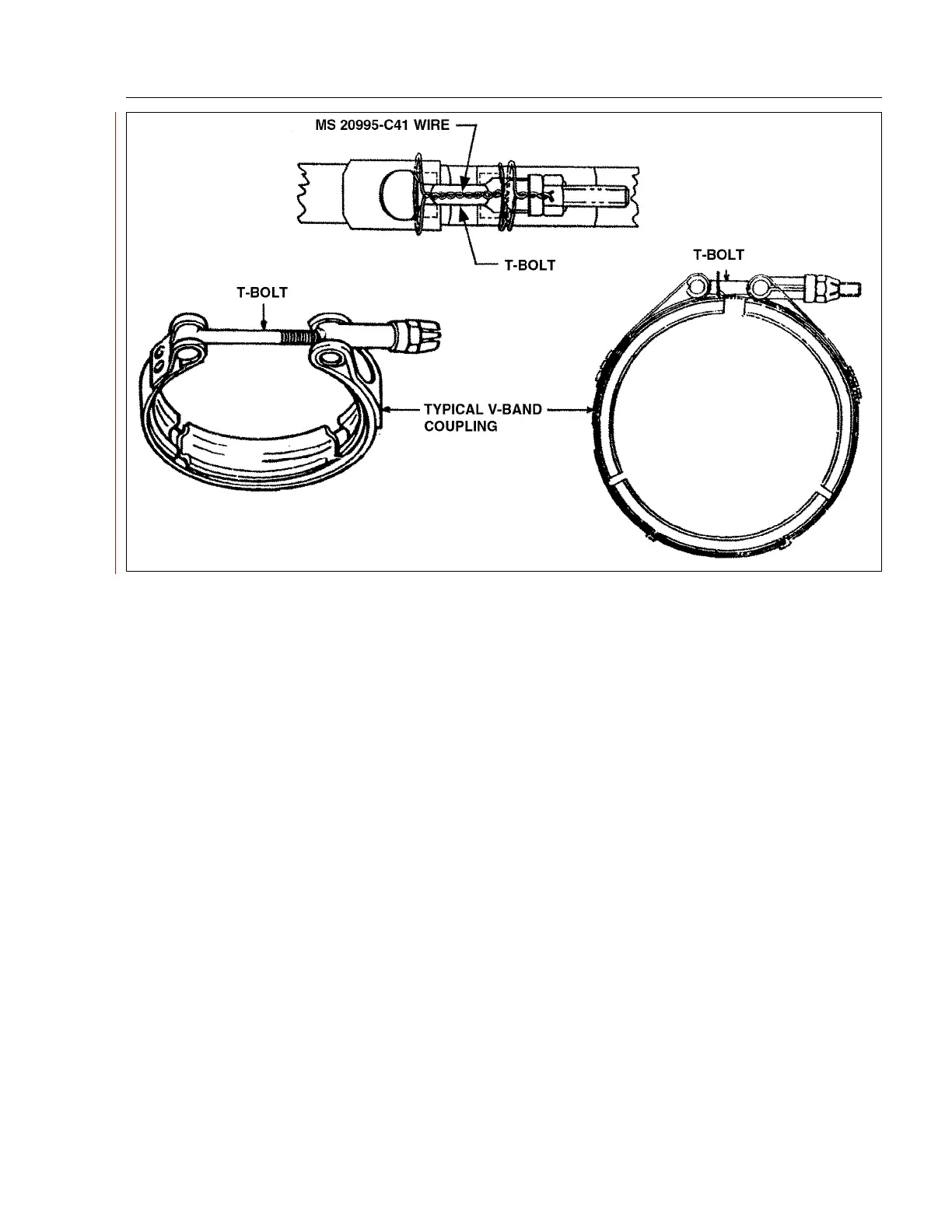

Figure 7C-5a. Lockwiring V-Band Coupling.
7C-28. Cleaning and Inspection of Pressure Relief Valve.
A. Clean valve and seat areas with solvent or air.
B. Inspect valve action by pushing on pressure side, to determine that bellows or spring are not
restricted.
C. Inspect valve and seat for wear or damage.
D. Inspect "O" ring gasket for damage or deterioration.

Piper Comanche PA-24 Specifications

General

Manufacturer	Piper Aircraft
Model	Comanche PA-24
Type	Light aircraft
First Flight	May 24, 1956
Number Built	4, 857
Seating Capacity	4
Engine	Lycoming O-360
Wingspan	36 ft (11 m)
Length	24 ft 8 in (7.5 m)
Stall Speed	62 mph (100 km/h, 54 kn)
Height	7 ft 6 in (2.3 m)
