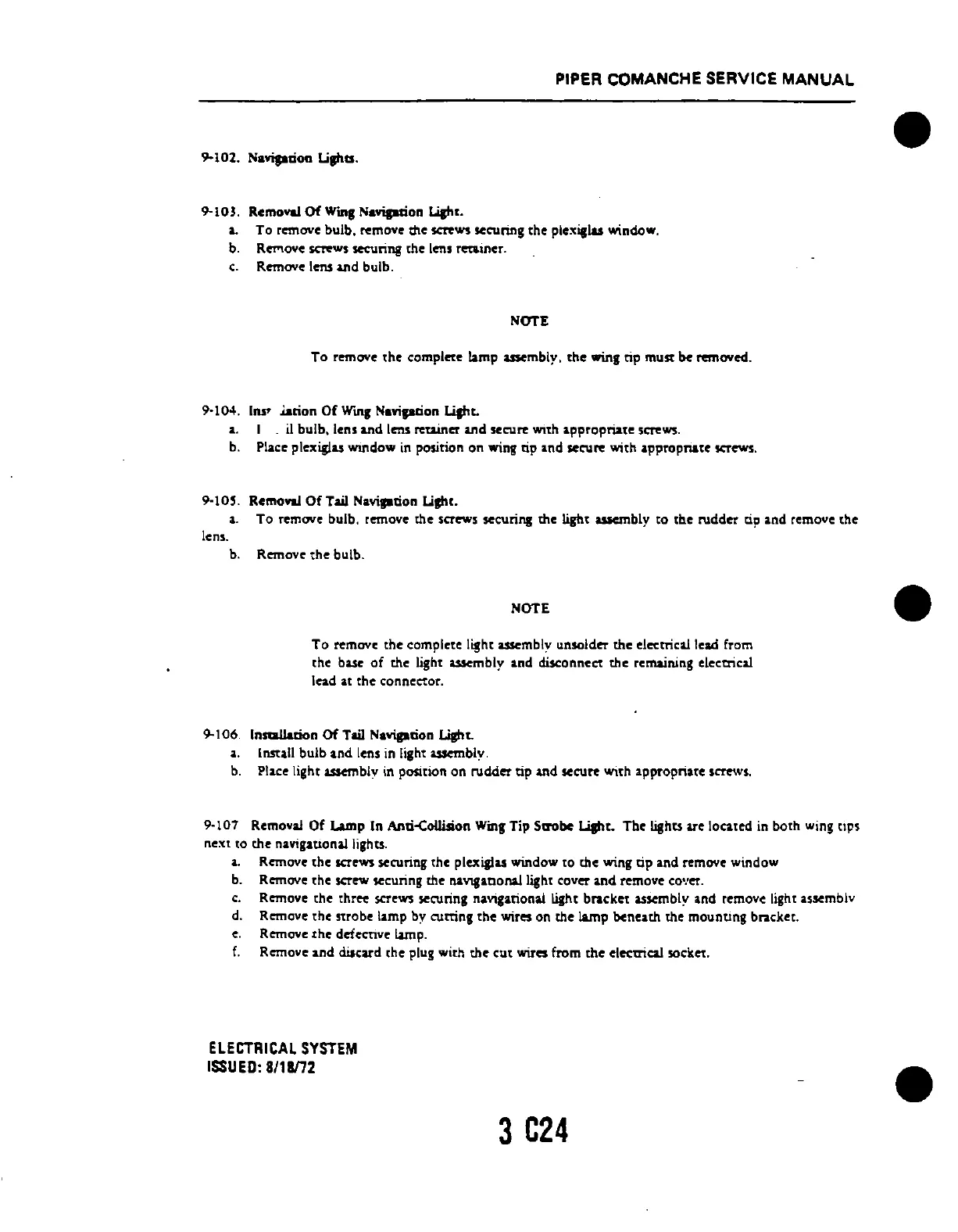

PIPER COMANCHE SERVICE MANUAL
1'-102. Naviption !.ish".
9-103. Removal Of Wing Naviption !.ish'.
I.. To remove bulb. remove the screws securing the pic"iB1as window.
b. R~oye screws securing the lens retainer.
c. Remove lens."d bulb.
NOTE
To remove the complete lamp assembly. the wing rip must be removed.
9·IO~. Ins' larion Of Wing Navigation !.ishL
a. I _ il bulb. lens and Ims retainer and secure WIth lppropriate screws.
b. Place plexiglas wmdow in position on wing tip and secure w1th lppropnate screws.
9·105. Removal Of Tail Naviption !.ish'.
lens.
a. To remove bulb. remove the scre'YiS securi"l the light UlCmbly to tne rudder tip and remove the
b. Remove the bulb.
NOTE
To remove the complete light assembly unsolder the elecmcallcad from
the
base of the light assembly and disconnect the remaining elecmeal
lead
at the connector.
9-106. Innallation Of Tail Naviption !.ishL
•. Inst.1I bulb .nd lens in light usembly.
b. Place light assembly in position on rudder tip and secure with appropriate SCTe\'IS.
9·107 Removal Of Lamp In Anti<oUision Wing Tip StrObe !.ish'. The Iithts ue located in both wing tip.
next to the navigJ.uonaJ lights.
a.. Remove the screws securing the plexiglu window to the wing tip and remoye window
b. Remove the screw securing the naVlla.nonaJ light cover a.nd remove CO'!eT.
c. Remove the three screws securing naviga.tiona.! light bracket assembly and remove light assemblY
d. Remove the strobe lamp by cutting the wires on the lamp beneath the mounang bncket.
e. Remove the defecnvc Lamp.
f. Remove and diKard the plug with the CUt wires from the electrical socket.
ELECTRICAL SYSTEM
ISSUED: 8/18172
3 C24

Piper Comanche PA-24 Specifications

General

Manufacturer	Piper Aircraft
Model	Comanche PA-24
Type	Light aircraft
First Flight	May 24, 1956
Number Built	4, 857
Seating Capacity	4
Engine	Lycoming O-360
Wingspan	36 ft (11 m)
Length	24 ft 8 in (7.5 m)
Stall Speed	62 mph (100 km/h, 54 kn)
Height	7 ft 6 in (2.3 m)
