PIPER COMANCHE SERVICE MANUAL
I
I
Slum
I
)
IlmO
/
/
/
\
I
EmwnJ
10 Ilum
IwnCil
.~
~J
l1li -c;P- I
~ i
~
= IITm'
~
I
... or

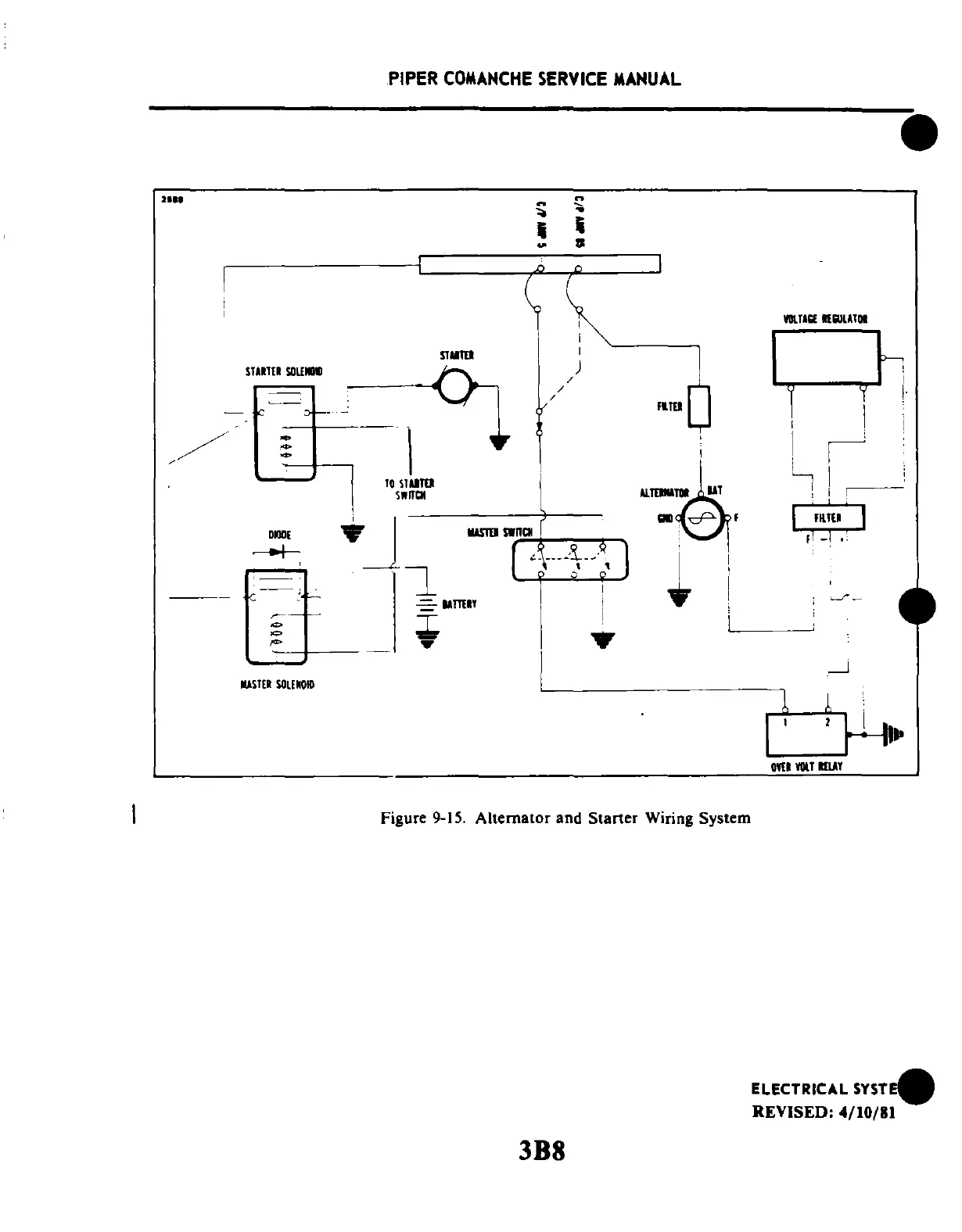

Figure 9-15. Alternator and Staner Wiring System
3B8
mTlClIIIIILATDI
~
1
1 I
I
I
i
I
'----l
!
I I
I ,:'~iu.. I
c..f_
..
ELECTRICAL SYSTEe
REVISED: 4/10/81

Piper Comanche PA-24 Specifications

General

Manufacturer	Piper Aircraft
Model	Comanche PA-24
Type	Light aircraft
First Flight	May 24, 1956
Number Built	4, 857
Seating Capacity	4
Engine	Lycoming O-360
Wingspan	36 ft (11 m)
Length	24 ft 8 in (7.5 m)
Stall Speed	62 mph (100 km/h, 54 kn)
Height	7 ft 6 in (2.3 m)
