PIPER COMANCHE SERVICE MANUAL
04/01/09 VI - LANDING GEAR AND BRAKE SYSTEM
1K19

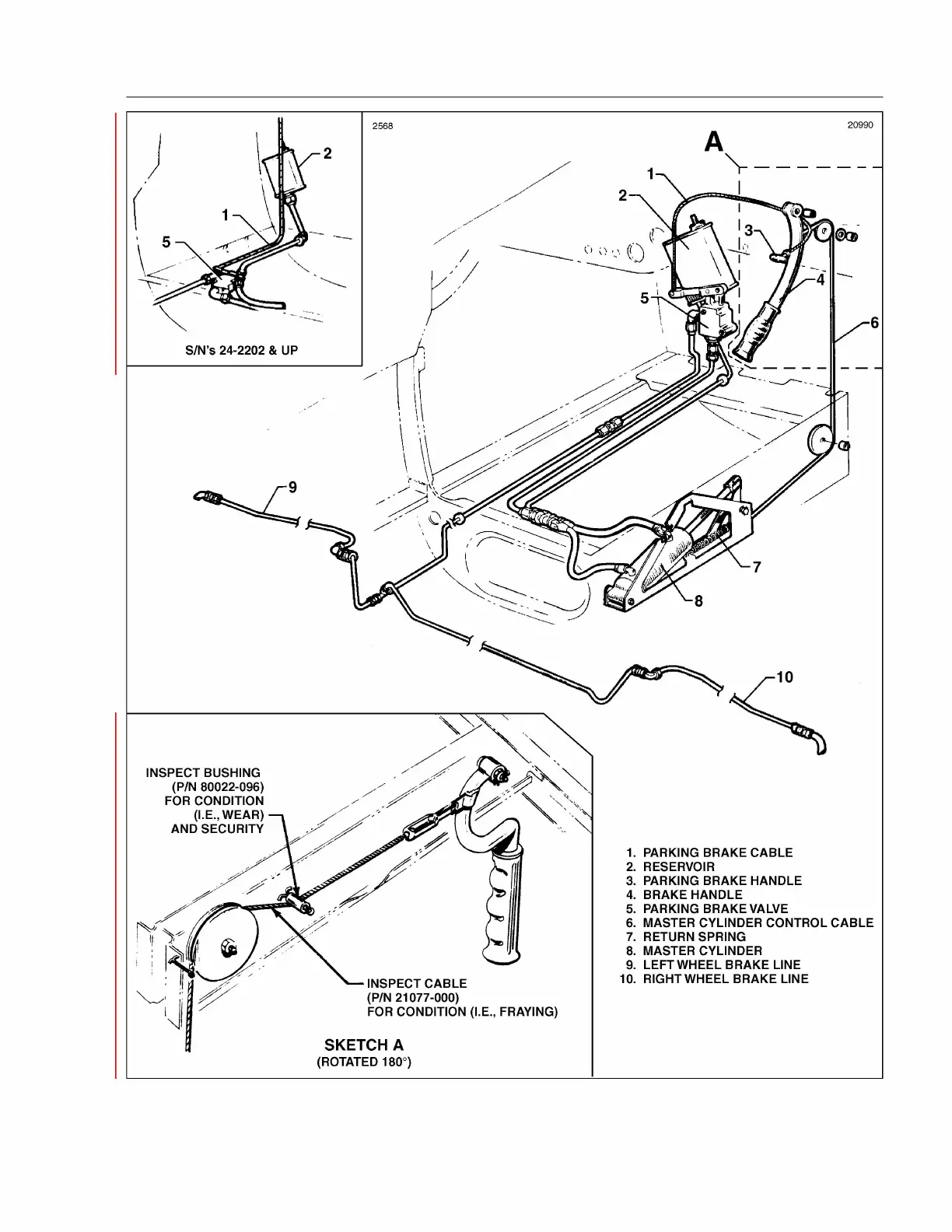

Figure 6-33. Brake System Installation - PA-24 and PA-24-250 S/N’s 24-1 thru 24-2298, less 24-2175
)
(
SIN's 24-2202 & UP
INSPECT BUSHING
(PIN 80022-096)
FOR CONDITION
(I.E., WEAR)
AND SECURITY
2
2568
INSPECT CABLE
(PIN 21077-000)
FOR CONDITION (I.E., FRAYING)
SKETCH A
(ROTATED 180°)
20990
A
\-------
I
1. PARKING BRAKE CABLE
2. RESERVOIR
3. PARKING BRAKE HANDLE
4. BRAKE HANDLE
5. PARKING BRAKE VALVE
6. MASTER CYLINDER CONTROL CABLE
7. RETURN SPRING
8. MASTER CYLINDER
9. LEFTWHEEL BRAKE LINE
10. RIGHTWHEEL BRAKE LINE

Piper Comanche PA-24 Specifications

General

Manufacturer	Piper Aircraft
Model	Comanche PA-24
Type	Light aircraft
First Flight	May 24, 1956
Number Built	4, 857
Seating Capacity	4
Engine	Lycoming O-360
Wingspan	36 ft (11 m)
Length	24 ft 8 in (7.5 m)
Stall Speed	62 mph (100 km/h, 54 kn)
Height	7 ft 6 in (2.3 m)
