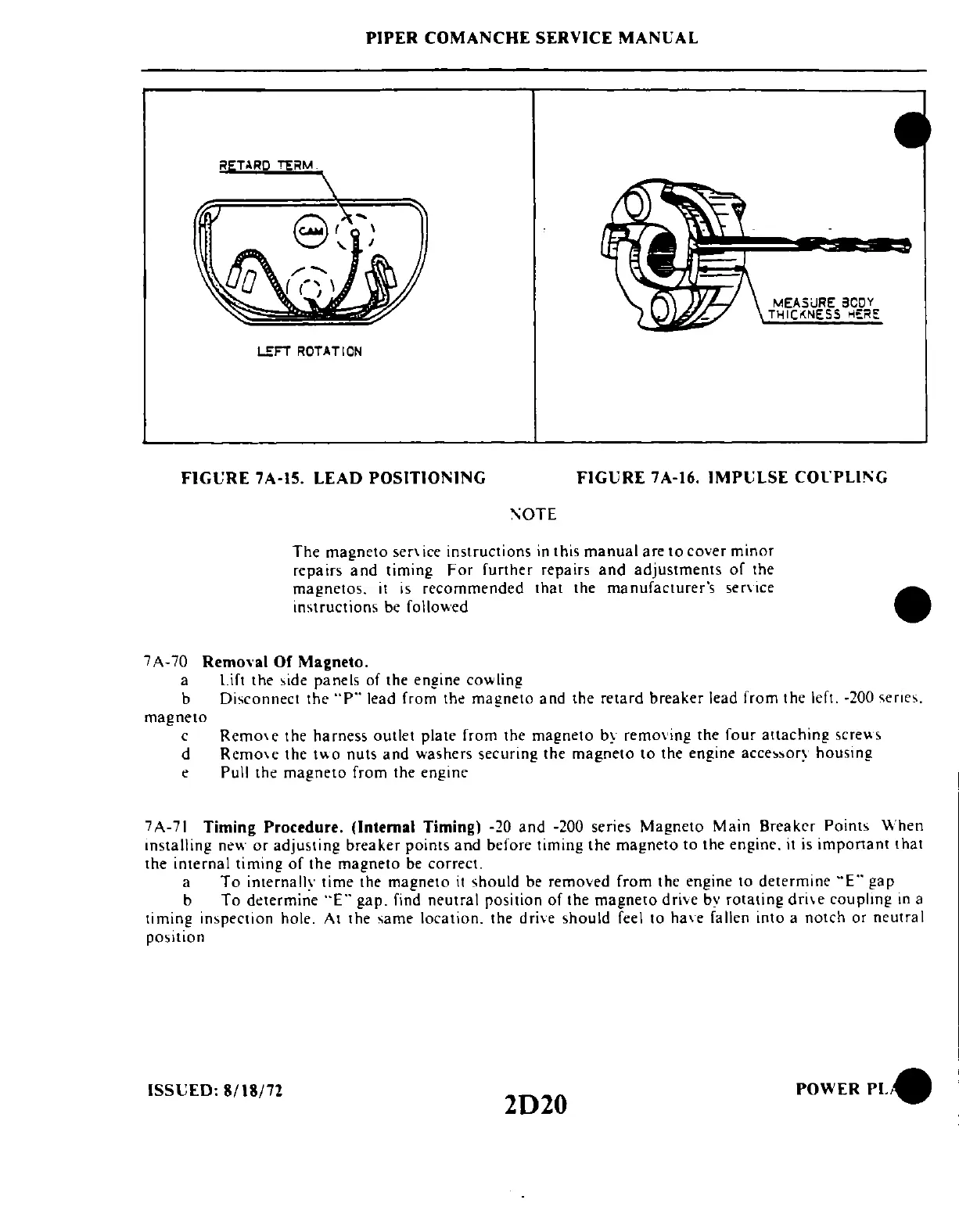

PIPER
COMANCHE
SERVICE
MANUAL
LEFT ROTATION
FIGURE
7A-15.
LEAD
POSITIONING
FIGURE
7A-16.
IMPULSE
COl·PLll"G
:-';OTE
The
mag.neto
sen
ice
instructions
in
this manual
are
to cover minor
repairs
and
timing
For
further
repairs
and
adjustments
of
the
magnetos.
it
is
recommended
that
the
manufacturers
sen
Ice
instructions
be followed
7 A-70
Remonl
Of Magneto.
a l.ift
the
,ide
panels
of
the engine
cowling
b
Disconnect
the
..
p
..
lead
from
the
magneto
and
the
retard
breaker
lead
from
the
left. -200
senes.
magneto
c
Remme
the
harness
outlet
plate
from
the
magneto
by
removing
the
four
attaching
screws
d
Remove
the
two
nuts
and
washers
securing
the
magneto
to
the engine
acce»ory
housing
e Pull the
magneto
from
the
engine
7 A-71 Timing Procedure. (Internal Timing) -20
and
-200 series
Magneto
Main
Breaker
Points
When
Installing new
or
adjusting
breaker
points
and
before
timing
the
magneto
to
the
engine.
it
is
imponantlhat
the
internal
timing
of
the
magneto
be
correct.
a
To
internallv
time
the
magneto
it
should
be
removed
from
the engine
to
determine
··E··
gap
b
To
determine
··E··
gap.
find
neutral
position
of
the
magneto
drive bv
rotating
drive
coupling
in
a
timing
inspection
hole. At
the
same
location.
the
drive
should
feel
to
haw
fallen
into
a
notch
or
neutral
position
ISSUED:
8/18/72
2D20
POWER
pl.e
