PIPER COMANCHE SERVICE MANt:AL
1. It"'" "OlUS·.". ICIII"
1. ~oc .. IIIUT
J. CO"TIIOL .&lthl
4. CO_TIIOL ."'IL
5. Sc:II'W ... ",.II,.'!'

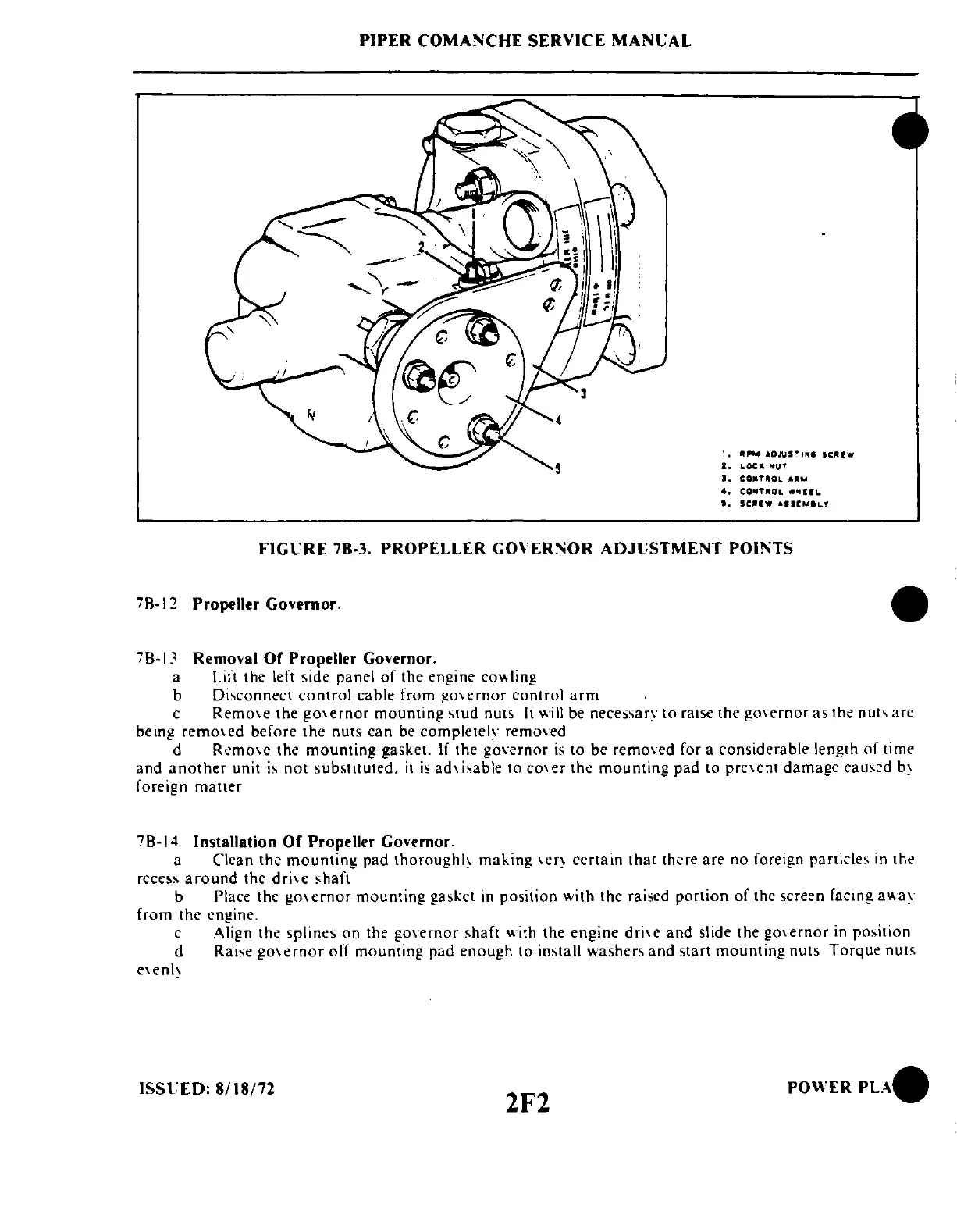

FIGl'RE 78·3. PROPELLER GOVERNOR ADJt:STMENT POINTS
78·12 Propeller Governor.
78-1.1 Removal Of Propeller Governor.
a l.ift the left side panel of the engine cowling
b Disconnect control cable from gO\ernor control arm
c RemO\e the gO\ernor mounting stud nuts It will be necessar~'to raise the go\ernor as the nuts arc
being remO\ed before the nuts can be completely remo\ed
d RemO\e the mounting gasket. If the go\'ernor is to be remo\ed for a considerable length of time
and another unit is not substituted. it is ad\i,able to co\er the mounting pad to prnent damage caused b~
foreign matter
78-14 Installation Of Propeller Governor.
a Clean the mounting pad thoroughh making \ery certain that there are no foreign particles in the
rece" around the dri\e shaft
b Place the gO\ernor mounting gasket in position with the raised portion of the screen facing awa\
from the engine,
c Align the spline, on the gO\ernor shaft with the engine dri\e and slide the go\ernor in po,ition
d Ra"e go\ernor off mounting pad enough to install washers and start mounting nuts Torque nuts
e\enl\
ISSl:ED: 8/18/72
2F2
POWER pu.e
