PIPER COMANCHE SERVICE MANUAL

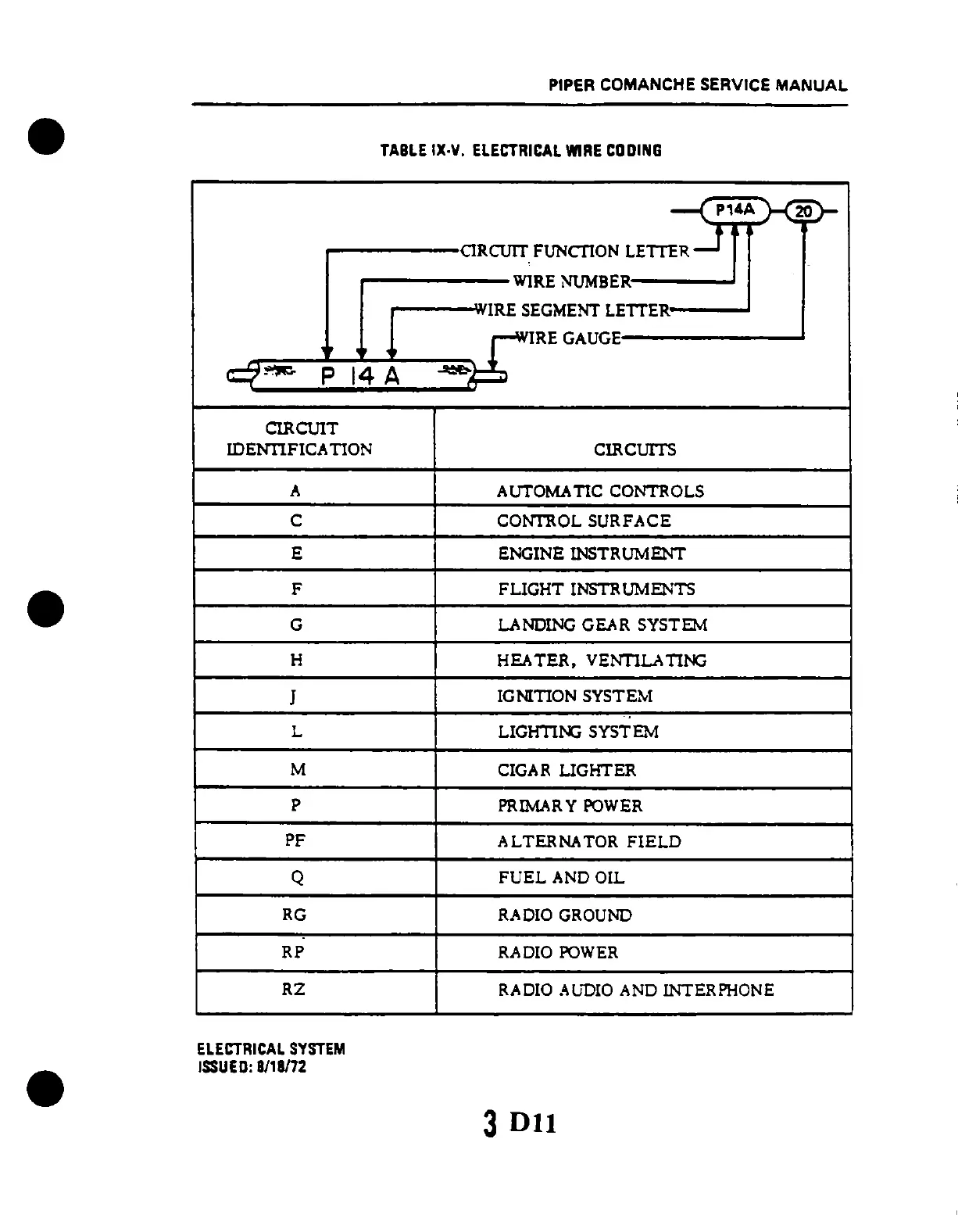

TABLE IX·Y. ELECTRICAL WIRE COOING
~
P 14 A
CIRCUIT
lDENnFICA TION
A
C
E
F
G
H
J
L
M
P
PF
Q
RG
RP
RZ
ELECTRICAL SYSTEM
ISSUED: 811Bn2
P14A
20
ORCUIT FUNCTION LEITER
WIRE NUMBER
IRE SEGMENT LEITER
_£REGAUGE
CIRCUITS
AUTOMATIC CONTROLS
COl'rrROL
SURFACE
ENGINE INSTRUMENT
FLIGHT INSTRUMENTS
LANDING
GEAR SYSTEM
HEATER. VENTILATING
IGNITION SYSTEM
LIGHTING SYSTEM
CIGAR LIGHTER
PRIMAR Y POWER
ALTERNATOR FIELD
FUEL AND OIL
RADIO GROUND
RADIO
POWER
RADIO .. HJDIO AND INTERPHONE
3 Dll

Piper Comanche PA-24 Specifications

General

Manufacturer	Piper Aircraft
Model	Comanche PA-24
Type	Light aircraft
First Flight	May 24, 1956
Number Built	4, 857
Seating Capacity	4
Engine	Lycoming O-360
Wingspan	36 ft (11 m)
Length	24 ft 8 in (7.5 m)
Stall Speed	62 mph (100 km/h, 54 kn)
Height	7 ft 6 in (2.3 m)
