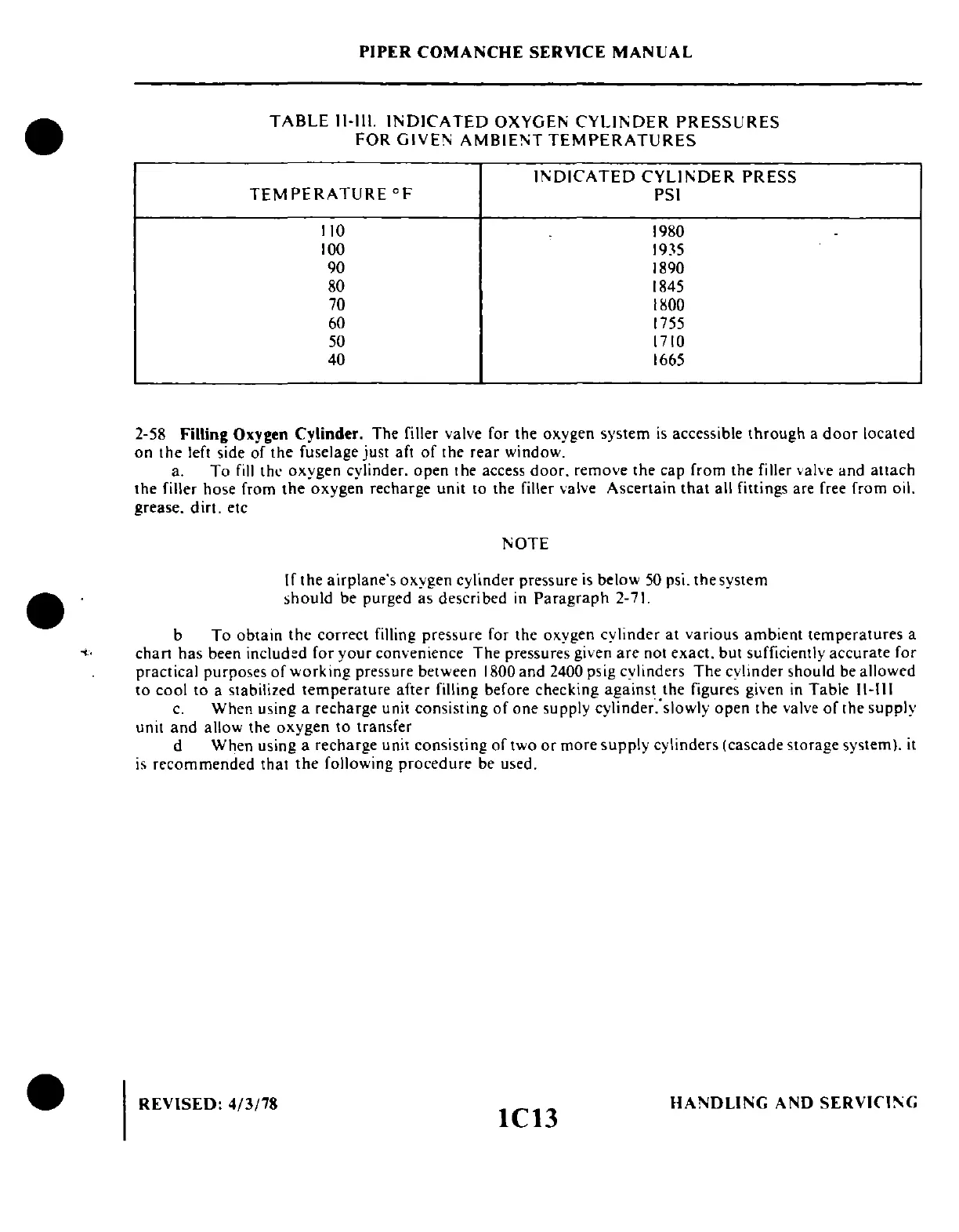

'1:.
PIPER
COMANCHE
SERVICE
MANUAL
TABLE
II-Ill.
INDICATED
OXYGEN
CYLI]\;DER
PRESSURES
FOR
GIVEN
AMBIENT
TEMPERATURES
INDICATED
CYLINDER
PRESS
TEMPERATURE
of
PSI
110
1980
100
1935
90
1890
80 1845
70
IgOO
60 1755
50
1710
40 1665
-
2-58
Filling
Oxygen
Cylinder.
The filler valve for the oxygen
system
is
accessible
through
a
door
located
on
the
left side
of
the
fuselage just aft
of
the
rear
window.
a.
To
fill
the
oxygen
cylinder.
open
the access
door.
remove
the
cap from
the
filler valve
and
attach
the
filler hose from
the
oxygen
recharge
unit
to the filler valve
Ascertain
that
all fittings are free
from
oil.
grease. d ir!. etc
NOTE
If
the
airplane's
oxygen
cylinder pressure
is
below
50
psi.
the
system
should
be purged
as
described
in
Paragraph
2-71.
b
To
obtain
the
correct
filling pressure for the oxygen
cylinder
at
various
ambient
temperatures
a
chan
has
been included for
your
convenience
The
pressures given
are
not
exact.
but sufficiently
accurate
for
practical purposes
of
work
ing pressure between 1800
and
2400 psig cylinders
The
cylinder should be allowed
to
cool
to
a stabilized
temperature
after filling before checking
against
the figures given
in
Table
II-III
c.
When
using a recharge unit
consisting
of
one
supply
cylindei.'slowly
open
the valve
of
the
supply
unit
and
allow the
oxygen
to
transfer
d
When
using a
recharge
unit consisting
of
two
or
more
supply
cylinders (cascade
storage
system).
it
is
recommended
that
the
following
procedure
be used.
REVISED:
4/3/78
lC13
HANDLING
AND
SERVICING

Table of Contents
