PIPER COMANCHE SERVICE MANUAL

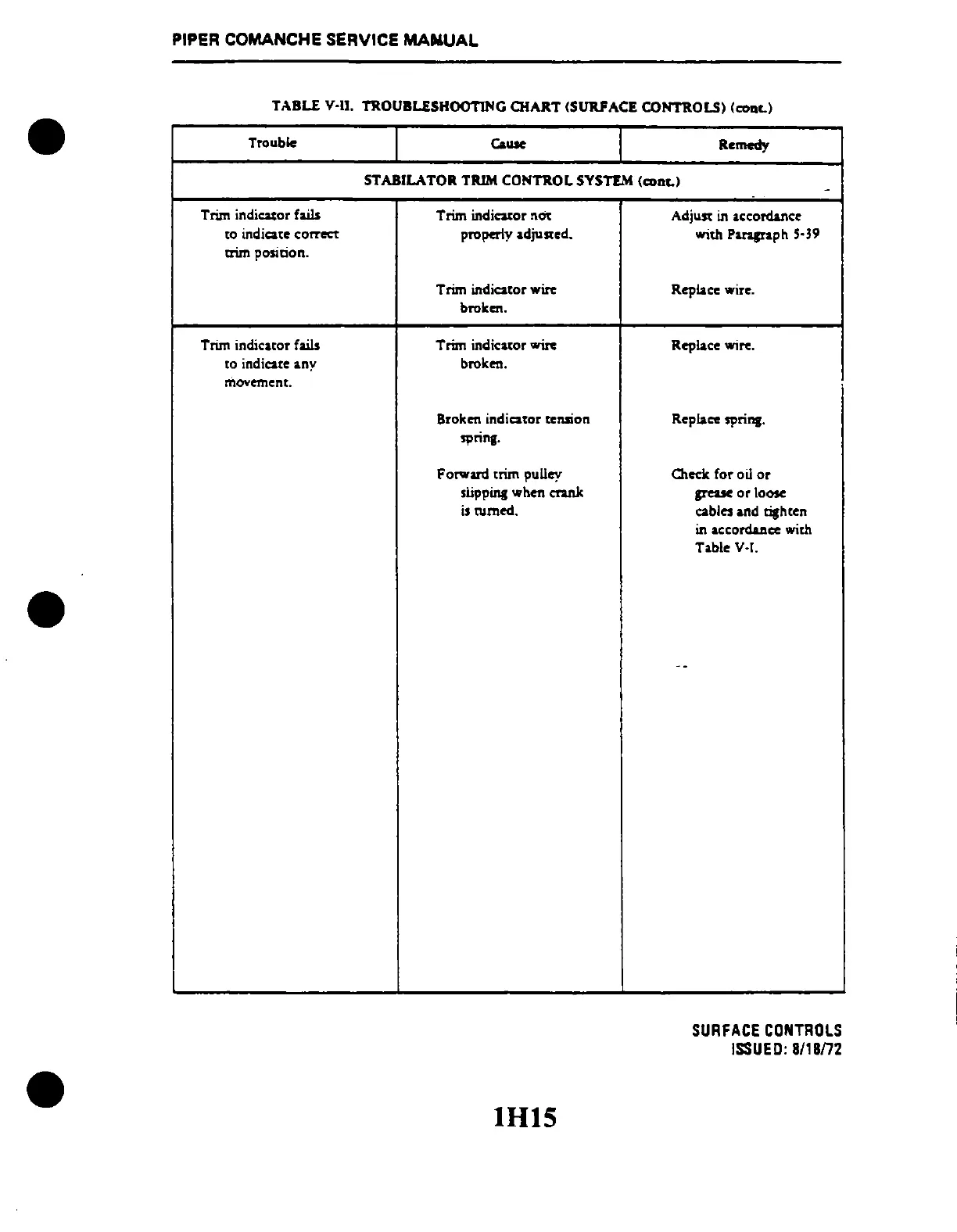

TABLE V·II. TROUBLESHOOTING CHART (SURFACE CONTROLS) (CODL)
Trouble
Trim indicator fails
to indicate COrT'ect
aim position.
Trim indicator fails
to indicate ilny
movement.
Cause
Remedy
STABILATOR TRIM CONTROL SYSTEM (CDftL)
Trim indicator nOt
properly adjuRed.
Trim indicator wire
broken.
Trim indicator wire
broken.
Broken indicator tension
spri",.
Forward trim puUey
slippinl when
crank
is tIImod.
IH15
-
Adjust in accordance
with Puqraph 5·39
Replace wire.
Replace wire.
Replace spri"l.
Cleek for oil or
grease or loose
cables and tighten
in accordance with
Table V·I.
-.
SURFACE CONTROLS
ISSUED: 8118n2
