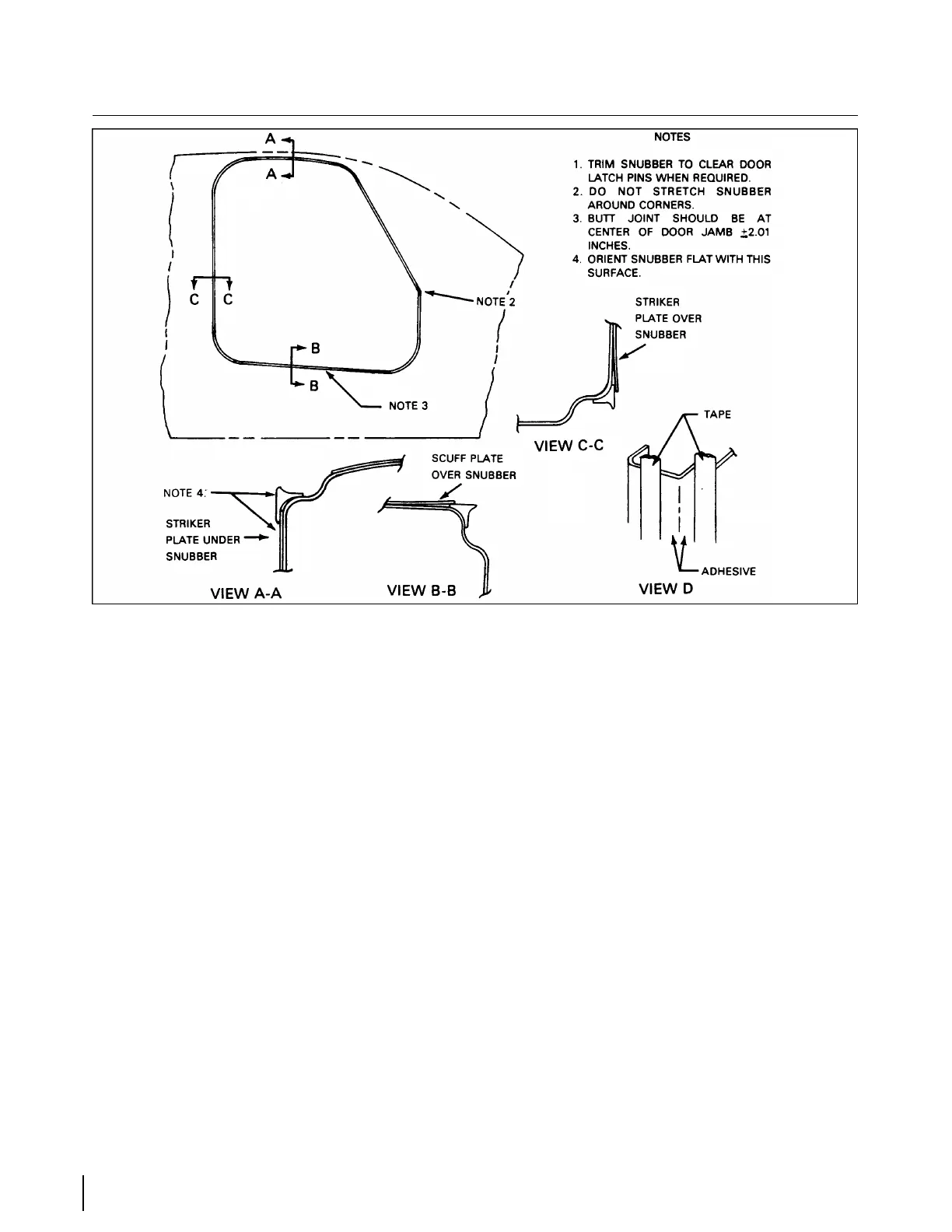

Figure 4-7a. Door Seal Snubber Installation
4-53.REMOVAL OF BAGGAGE DOOR HINGE.
a. Remove the door from the airplane as described in Removal of Baggage Door, Paragraph 4-49.
b. Remove the hinge half from the airplane or door by drilling out the rivets and removing the hinge.
4-54.INSTALLATION OF BAGGAGE DOOR HINGE.
a. Place the hinge halves together and install the hinge pin.
b. Install the door into the closed position and drill the two end rivet holes and install the rivets.
c. Operate the door and check for proper fit and installation. Drill the remaining holes and install the
rivets.
4-55.STRUCTURAL REPAIRS. Structural repair methods used must be made in accordance with the
regulations set forth in FAA Advisory Circular 43.13-lA. To assist in making repairs and/or replacements,
Figure 4-7 identifies the type and thickness of various skin material used. never make a skin replacement or
patch plate from material other than the type of the original skin, or of a different thickness than the original
skin. The repair must be as strong as the original skin. However, flexibility must be retained so the surrounding
areas will not receive extra stress.
WARNING
NO access holes are permitted in any control surfaces.
WARNING
The use of patch plates for repairs of all movable tail surfaces is prohibited.
The use of any filler material normally used for repair of minor dents
and/or materials used for filling the inside of surfaces is also prohibited on
all movable tail surfaces.
Revised: 10/18/83
1E14
CHEROKEE ARROW III SERVICE MANUAL
STRUCTURES
