Piper TURBO ARROW III - Alternator and Starter, PA-28 R-201

To Next Page

To Previous Page

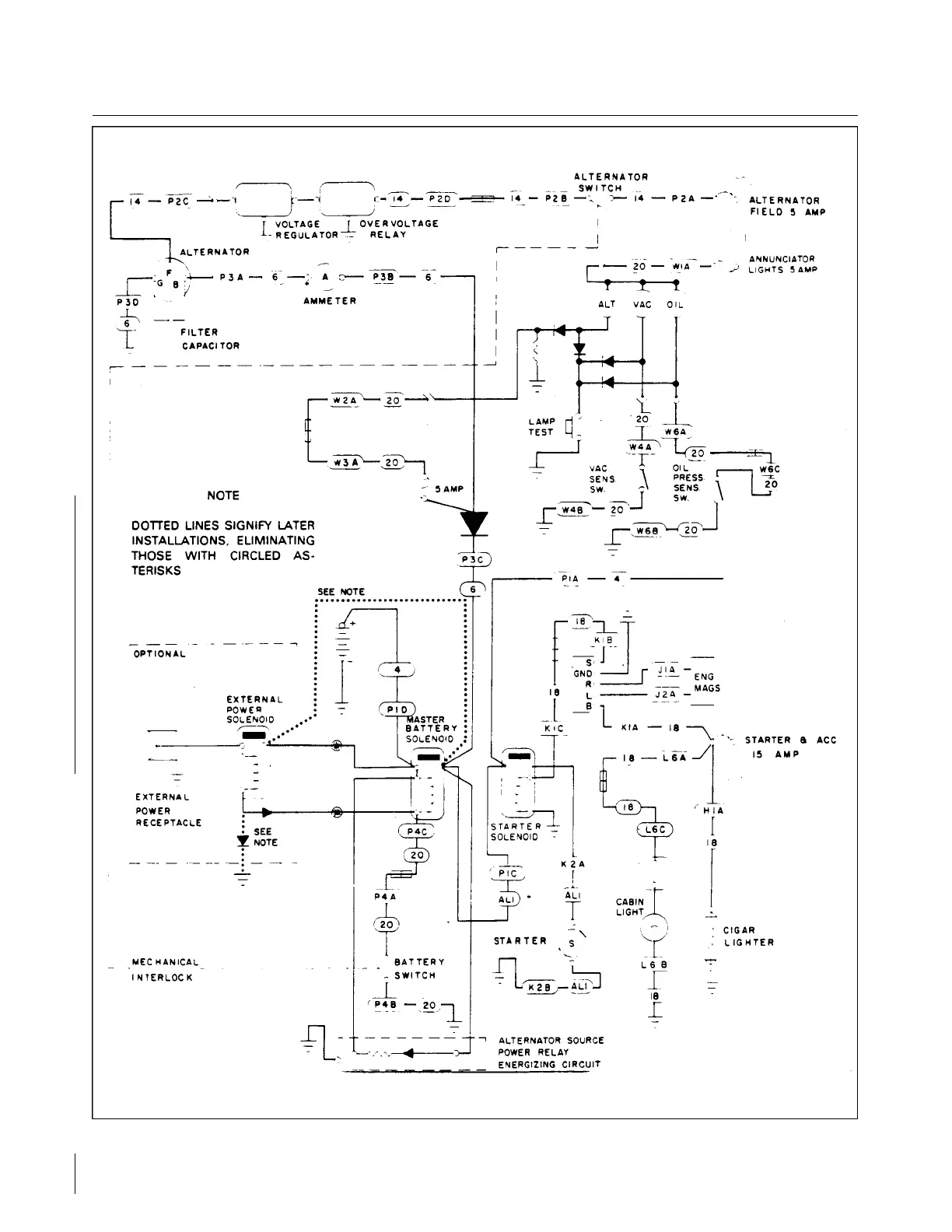

Figure 11-63. Alternator and Starter, PA-28R-201

Revised: 2/13/89

2J13

CHEROKEE ARROW III SERVICE MANUAL

ELECTRICAL SYSTEM

Main Page
