Piper TURBO ARROW III - Air Conditioning Wiring Schematic

To Next Page

To Previous Page

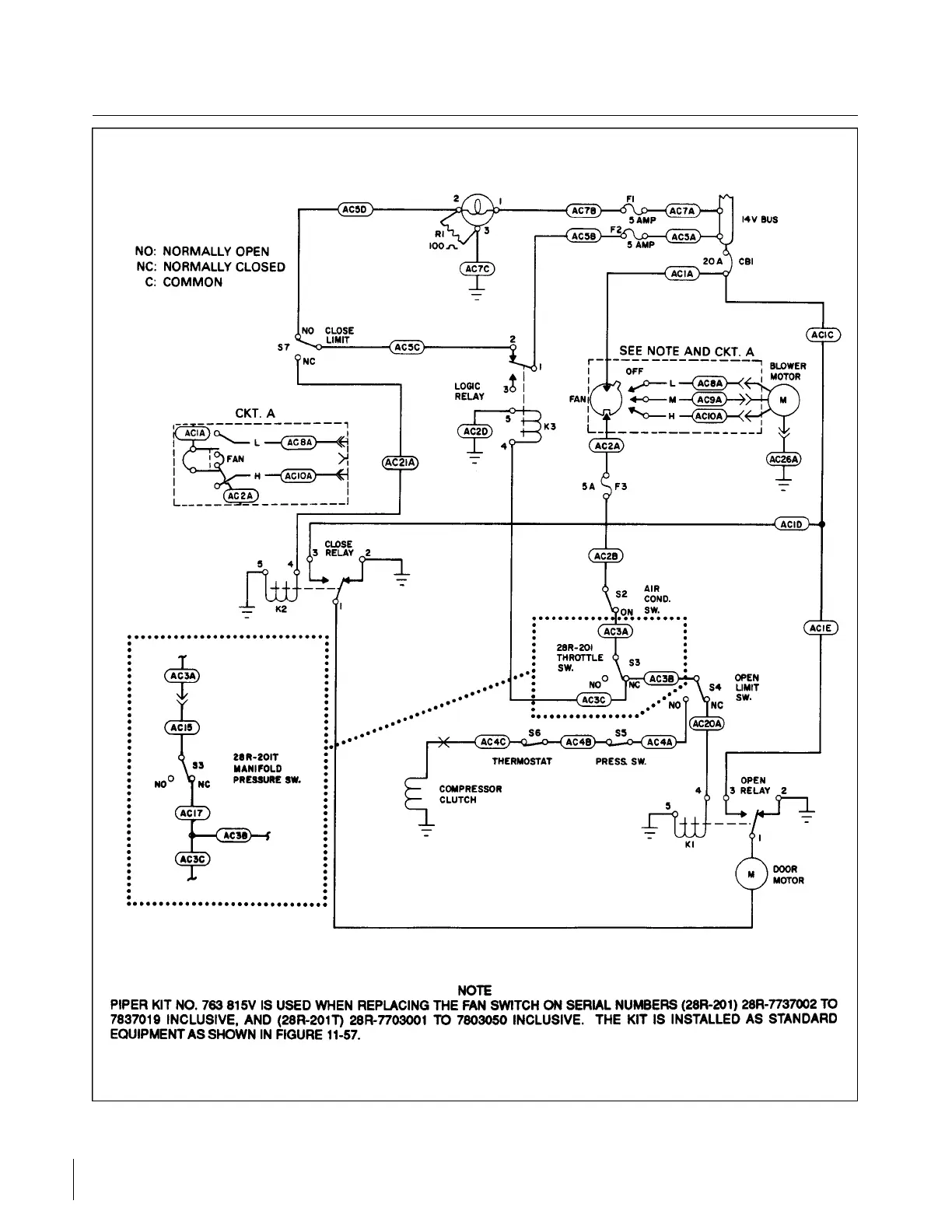

Figure 14-15. Air Conditioning Wiring Schematic

Revised: 2/13/89

3B14

CHEROKEE ARROW III SERVICE MANUAL

ACCESSORIES AND UTILITIES
