Piper TURBO ARROW III - Alternator and Starter, PA-28 R-201 T (Early Models)

To Next Page

To Previous Page

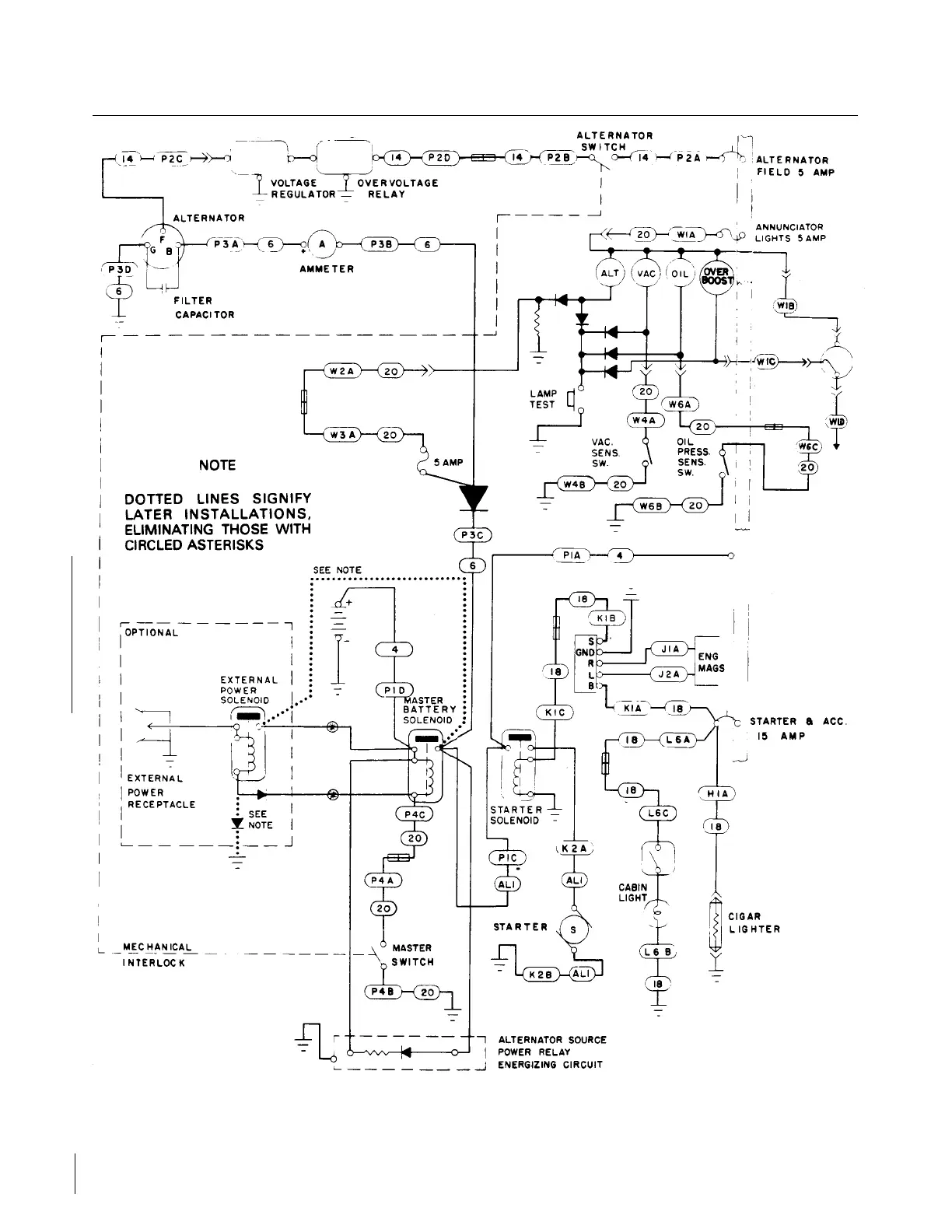

Figure 11-64. Alternator and Starter, PA-28R-201T (Early Models)

Revised: 2/13/89

2J14

CHEROKEE ARROW III SERVICE MANUAL

ELECTRICAL SYSTEM
