Piper TURBO ARROW III - Alternator and Starter Schematic

To Next Page

To Previous Page

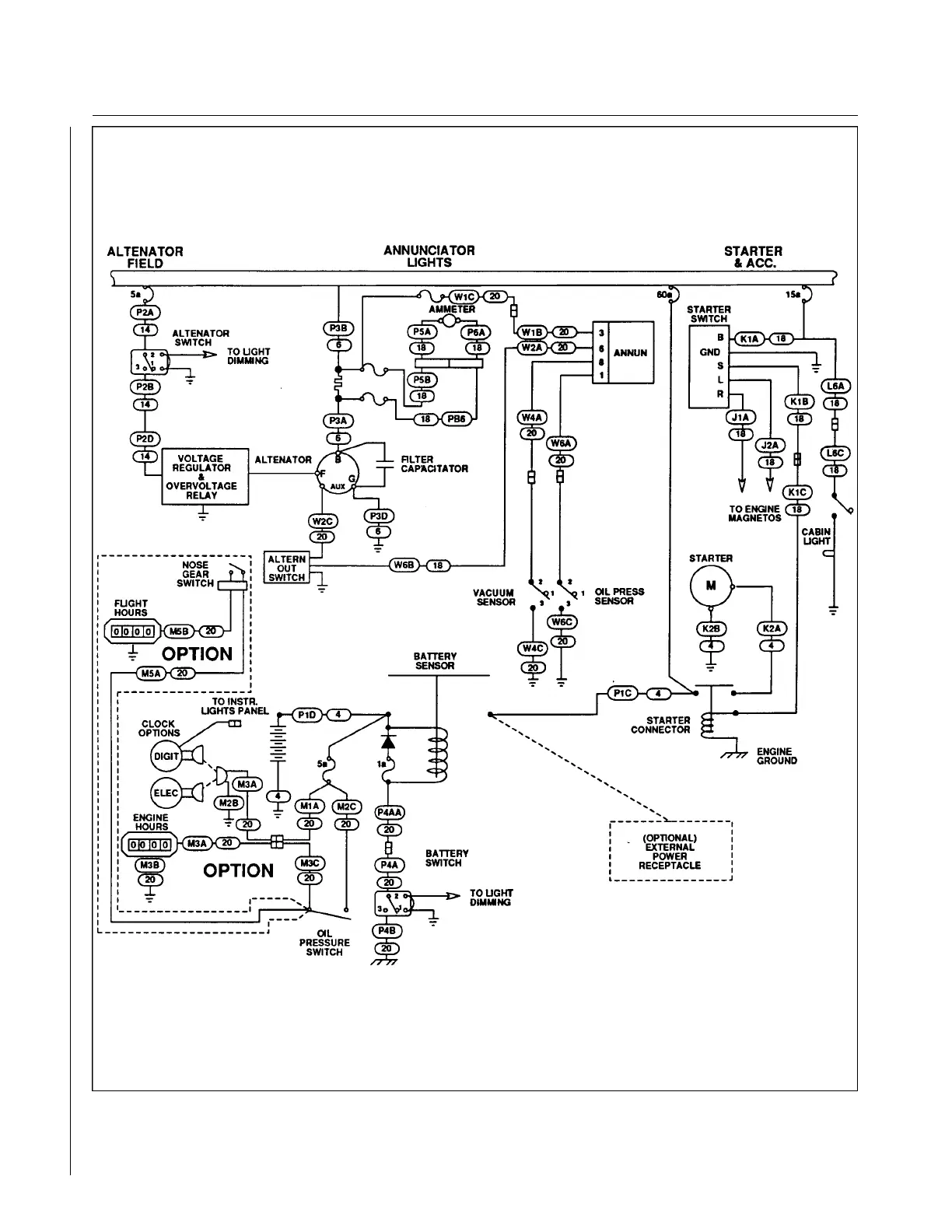

Figure 11-64a. Alternator and Starter Schematic

(PA-28R-201 S/N’s 2837001 & up, PA-28R-201T S/N’s 2803001 & up)

Revised: 2/13/89

2J15

CHEROKEE ARROW III SERVICE MANUAL

ELECTRICAL SYSTEM
