Piper TURBO ARROW III - Schematic Diagram of Hydraulic System (Prestolite)

To Next Page

To Previous Page

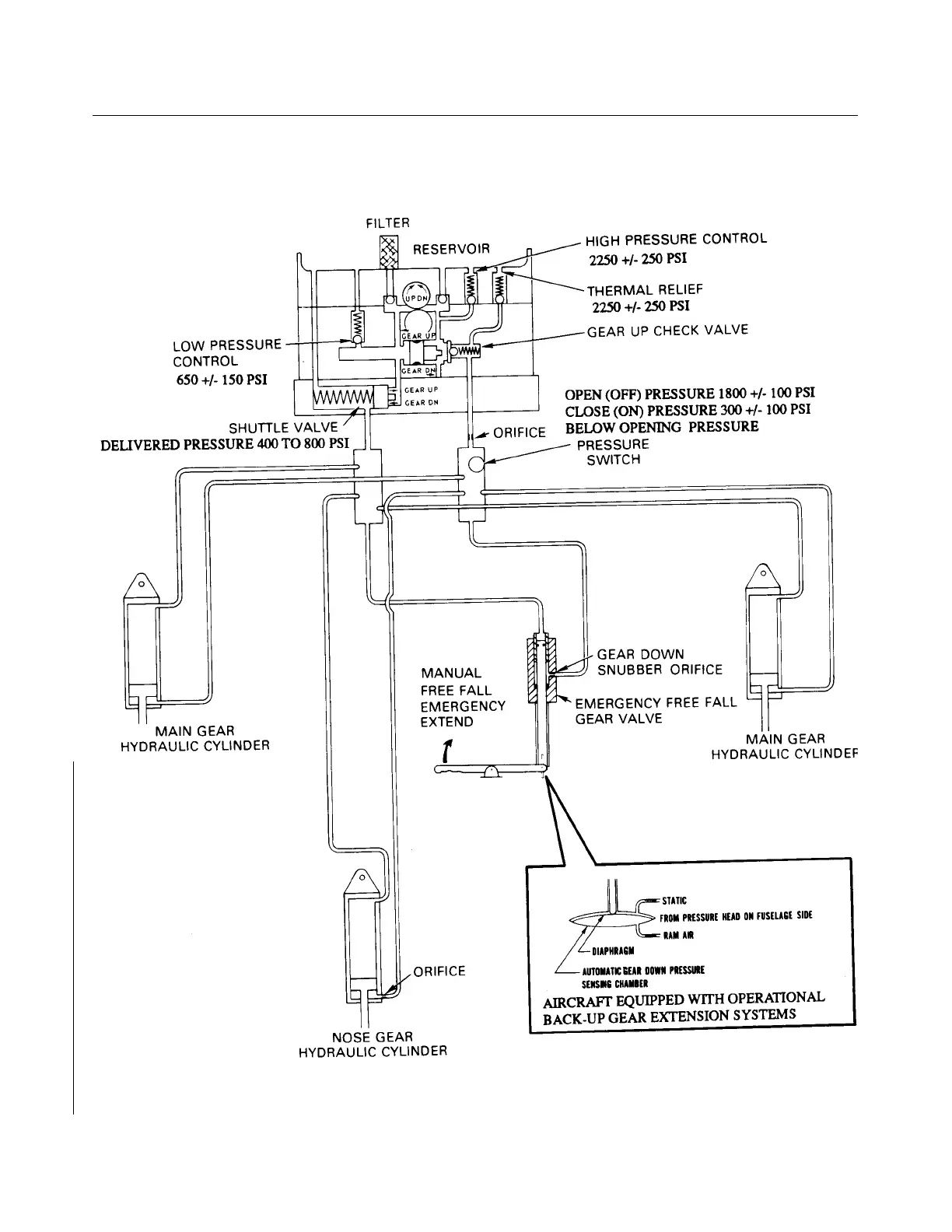

Figure 6-1. Schematic Diagram of Hydraulic System (Prestolite)

Revised: 2/13/89

1H8

* CHEROKEE ARROW III SERVICE MANUAL

HYDRAULIC SYSTEM
