Piper TURBO ARROW III - Engine Controls

To Next Page

To Previous Page

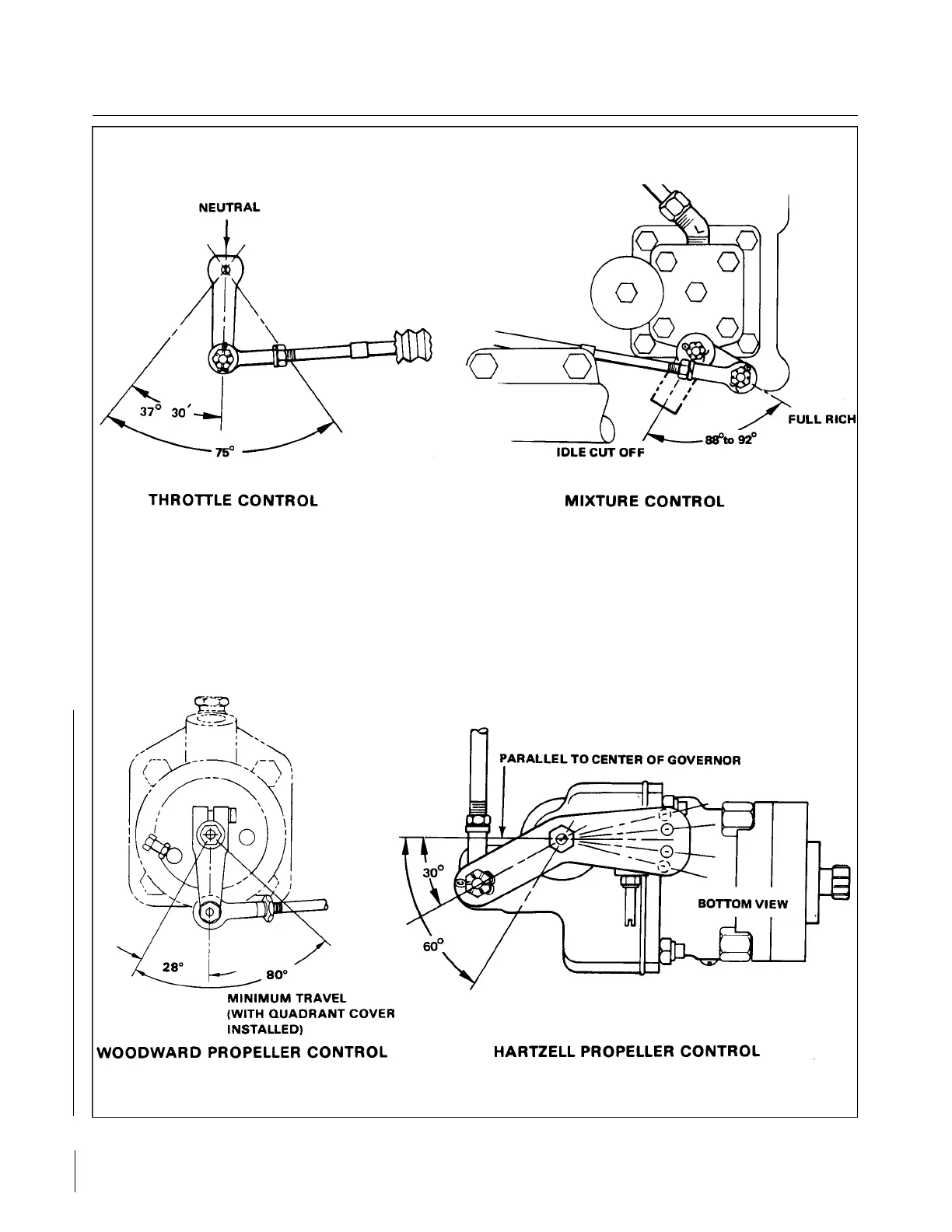

Figure 8-33. Engine Controls

Revised: 8/31/77

2C4

CHEROKEE ARROW III SERVICE MANUAL

POWER PLANT - CONTINENTAL
