Piper TURBO ARROW III - Engine Installation

To Next Page

To Previous Page

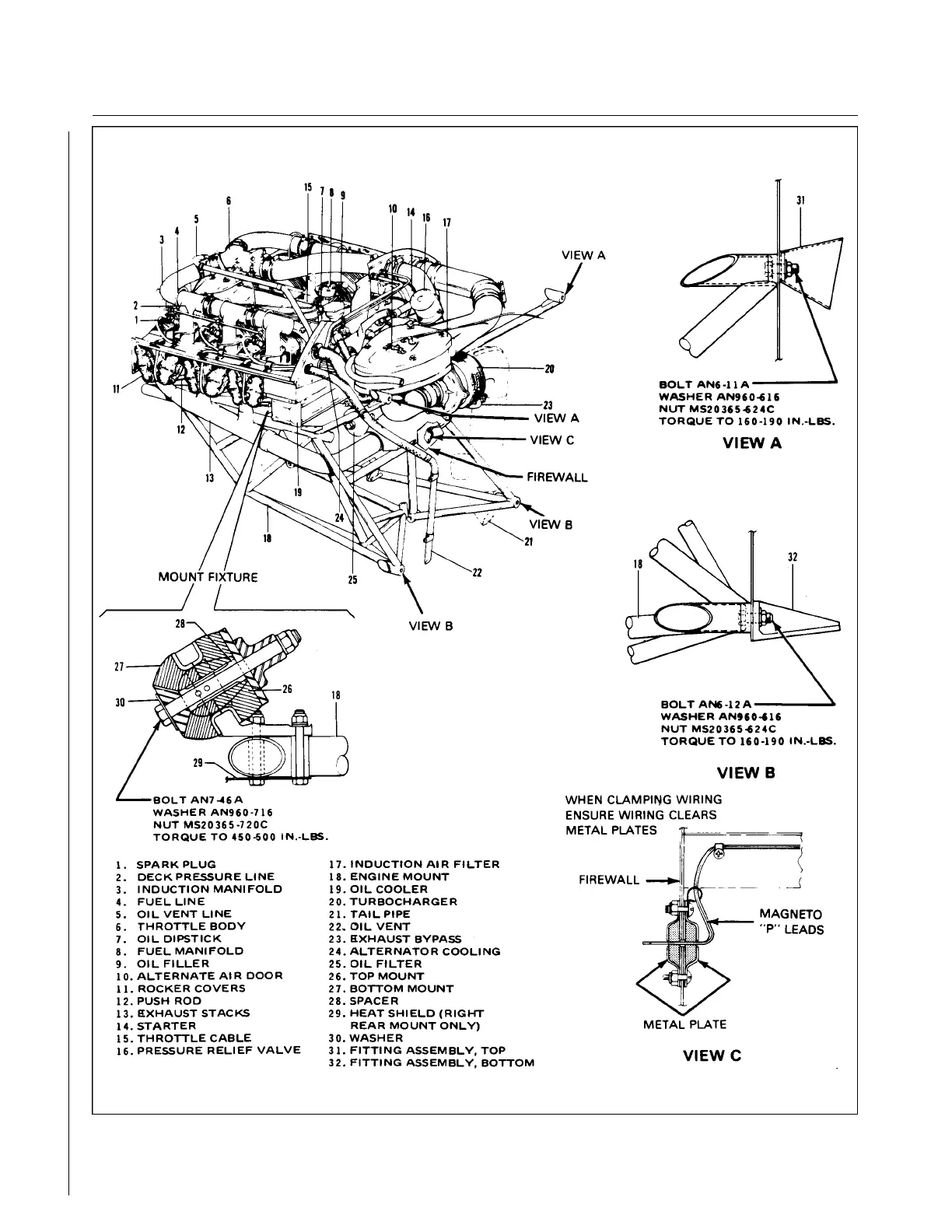

Figure 8-6. Engine Installation
Revised 12/11/78
2A20
CHEROKEE ARROW III SERVICE MANUAL
POWER PLANT - CONTINENTAL
