Piper TURBO ARROW III - Balance Specifications; Rudder Balance Weight

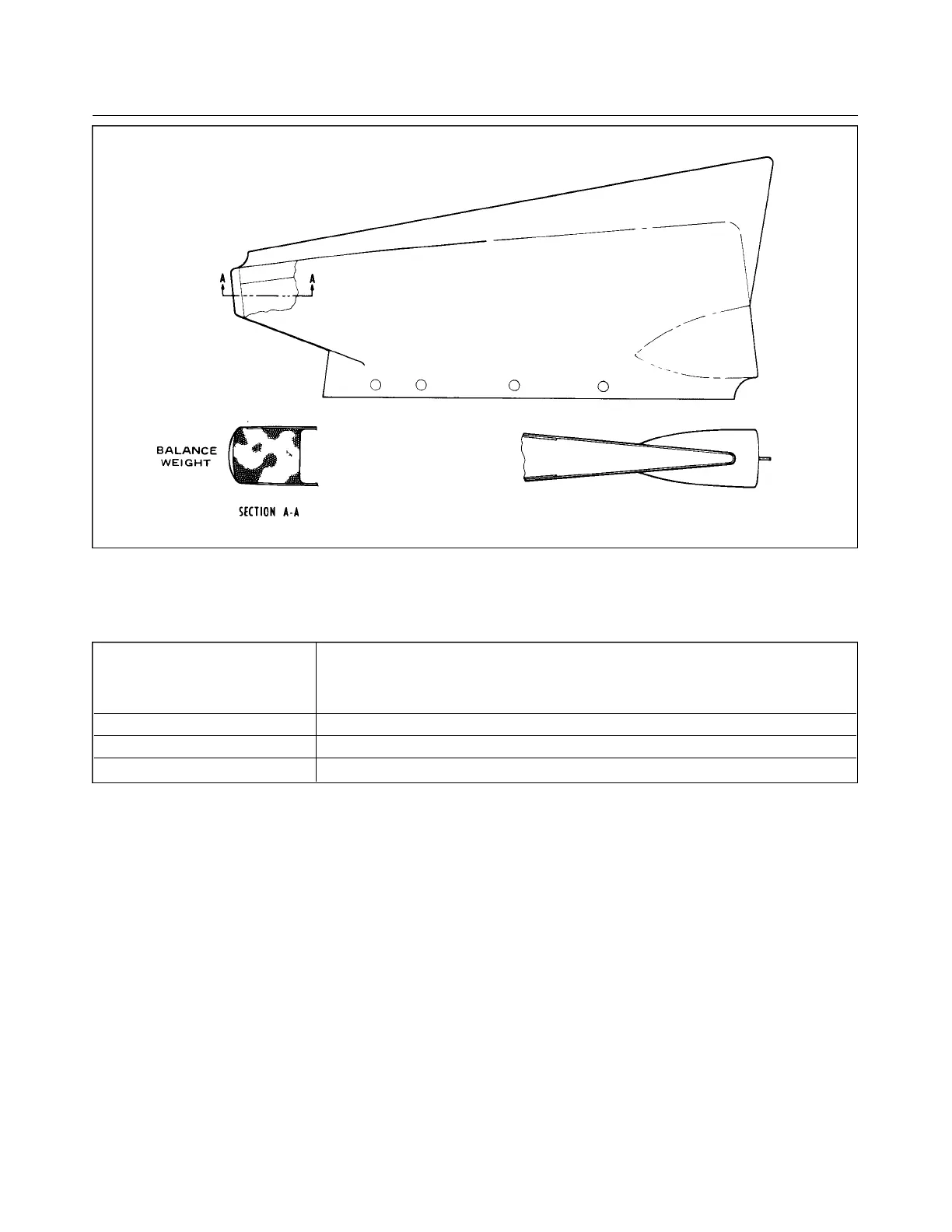

Figure 4-12. Rudder Balance Weight
TABLE IV-I. BALANCE SPECIFICATIONS
FLIGHT CONDITIONS
STATIC BALANCE LIMITS (IN.—LBS.)
SURFACE Leading Edge Heavy Trailing Edge Heavy
Ailerons -5 to -13
Stabilators +5 to -40
Rudders 0 to -10.5
Issued: 12/15/76
1E24
