Piper TURBO ARROW III - A. Strobe Light Connections (Later Models)

To Next Page

To Previous Page

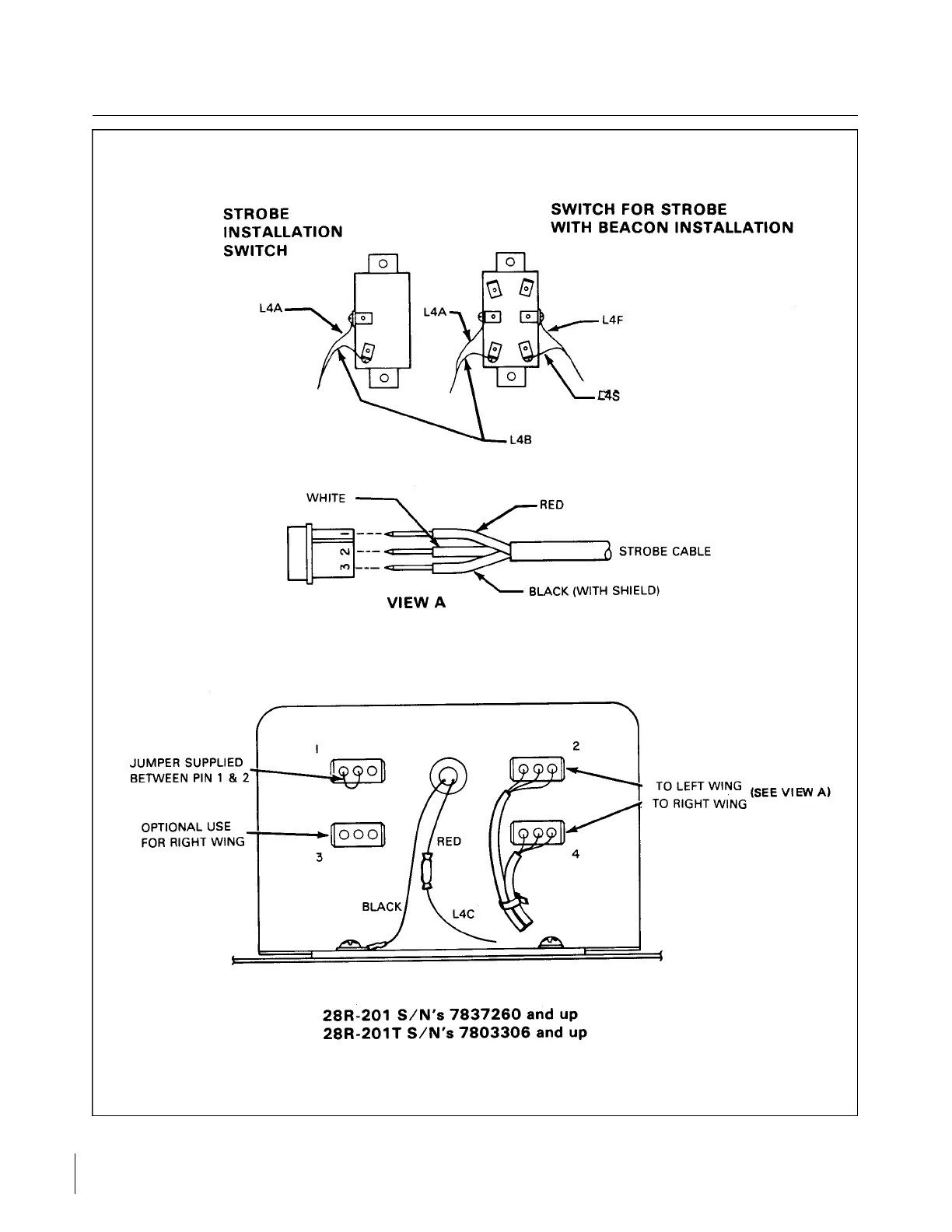

Figure 11-44a. Strobe Light Connections (Later Models)

Revised: 2/13/89

2I8

CHEROKEE ARROW III SERVICE MANUAL

ELECTRICAL SYSTEM
