Piper TURBO ARROW III - Installation of Swageloc Fittings

To Next Page

To Previous Page

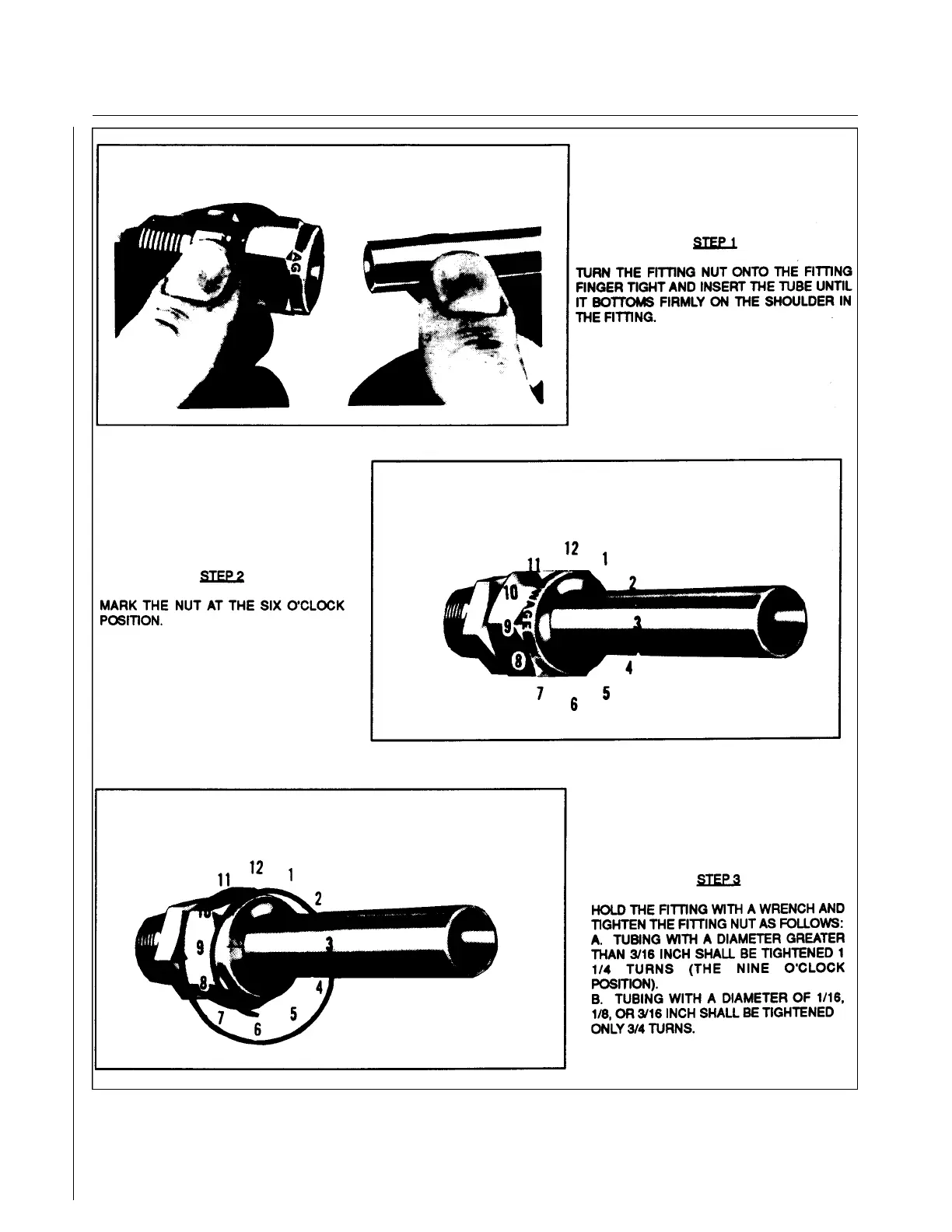

Figure 14-19. Installation of Swageloc Fittings

Revised: 2/13/89

3C7

CHEROKEE ARROW III SERVICE MANUAL

ACCESSORIES AND UTILITIES
