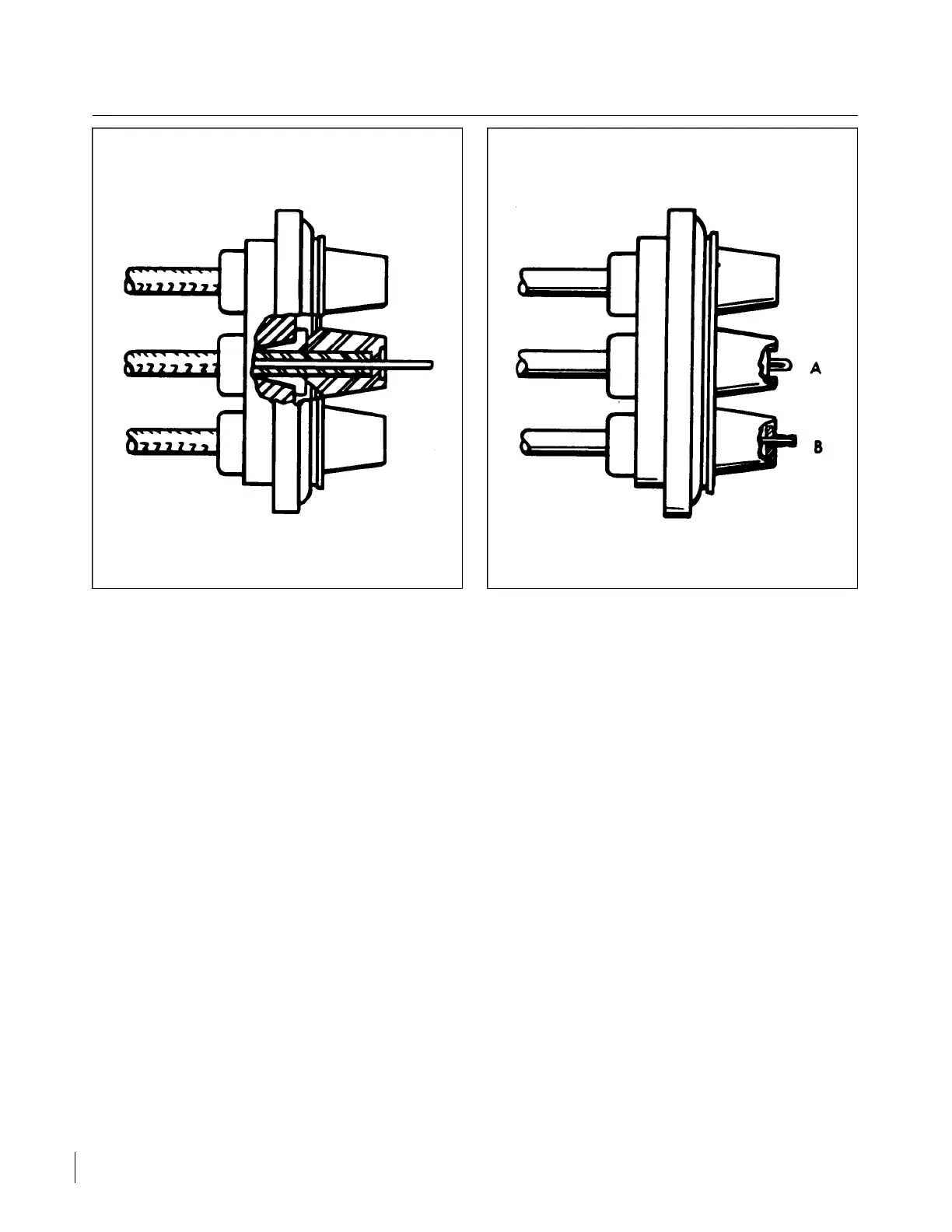

Figure 8-26. Lead Assembly Installed in Grommet Figure 8-27. Wire Doubled Over
For Installation of Eyelet
17. Install the clamps and cable ties, as necessary, to secure the lead to the engine.
CAUTION
Leads should be dressed away from hot spots, such as manifolds and sharp
edges which cause chafing.
8-44. INSTA L L ATION OF HARNESS. Before installing the harness plate on the magneto, check the mating
surfaces for cleanliness. Spray the entire face of the grommet with a light coat of Plastic Mold Spray, SM-O-O-TH
Silicone Spray or equivalent. This will prevent the harness grommet from sticking to the magneto distributor block.
a. Place the harness terminal plate on the magneto and tighten the nuts around the plate alternately to seat
the cover squarely on the magneto. Torque the nuts to 18 to 22 inch-pounds.
b. Route the ignition wires to their respective cylinders as shown in Figure 8-28.
c. Clamp the harness assembly in position.
d. Connect the leads to the spark plugs.
Revised: 8/31/77
2B20
CHEROKEE ARROW III SERVICE MANUAL
POWER PLANT - CONTINENTAL
