Piper TURBO ARROW III - A-1. Propeller Installation (Hartzell)

To Next Page

To Previous Page

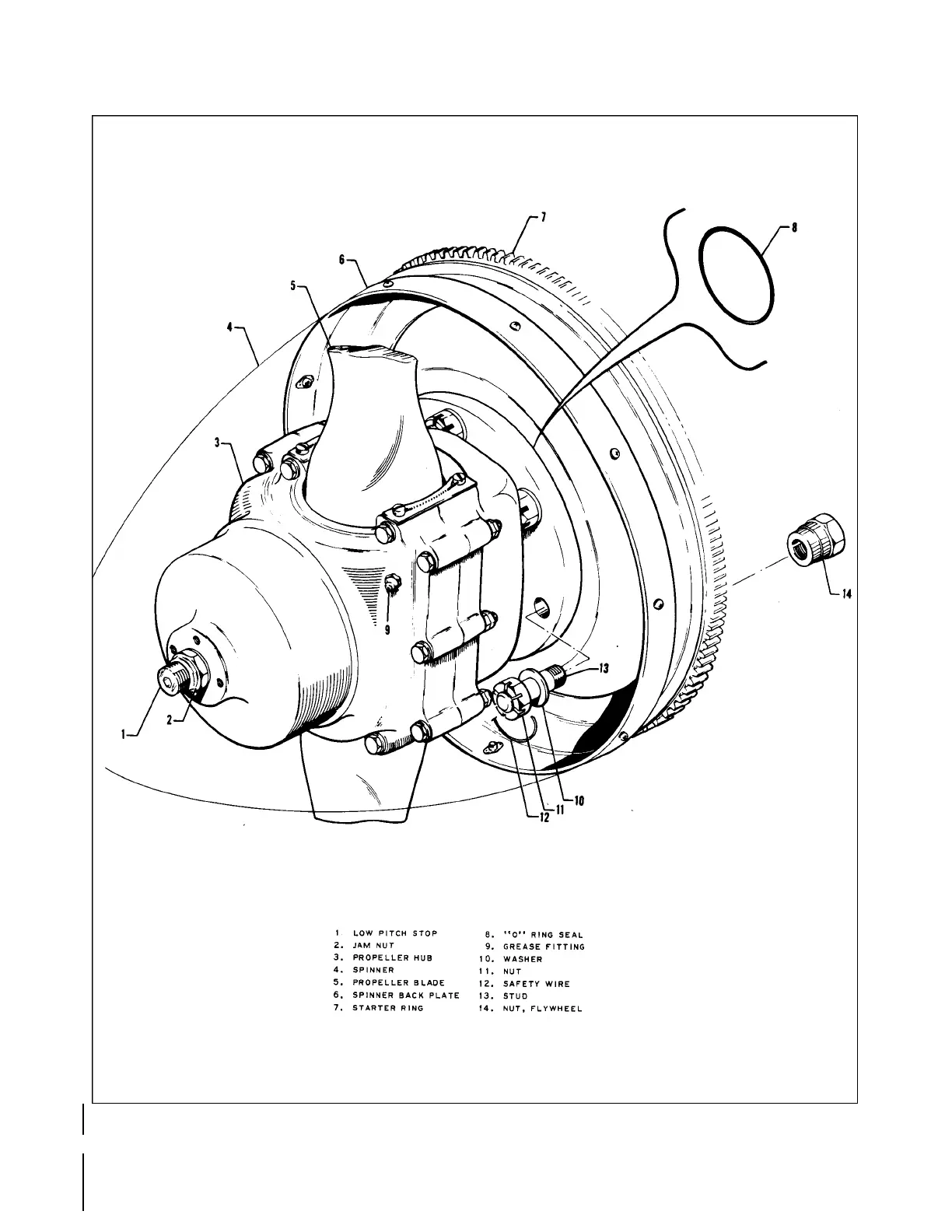

Figure 8A-1. Propeller Installation (Hartzell)
Revised: 5/1/80
2C21
CHEROKEE ARROW III SERVICE MANUAL
POWER PLANT - LYCOMING
