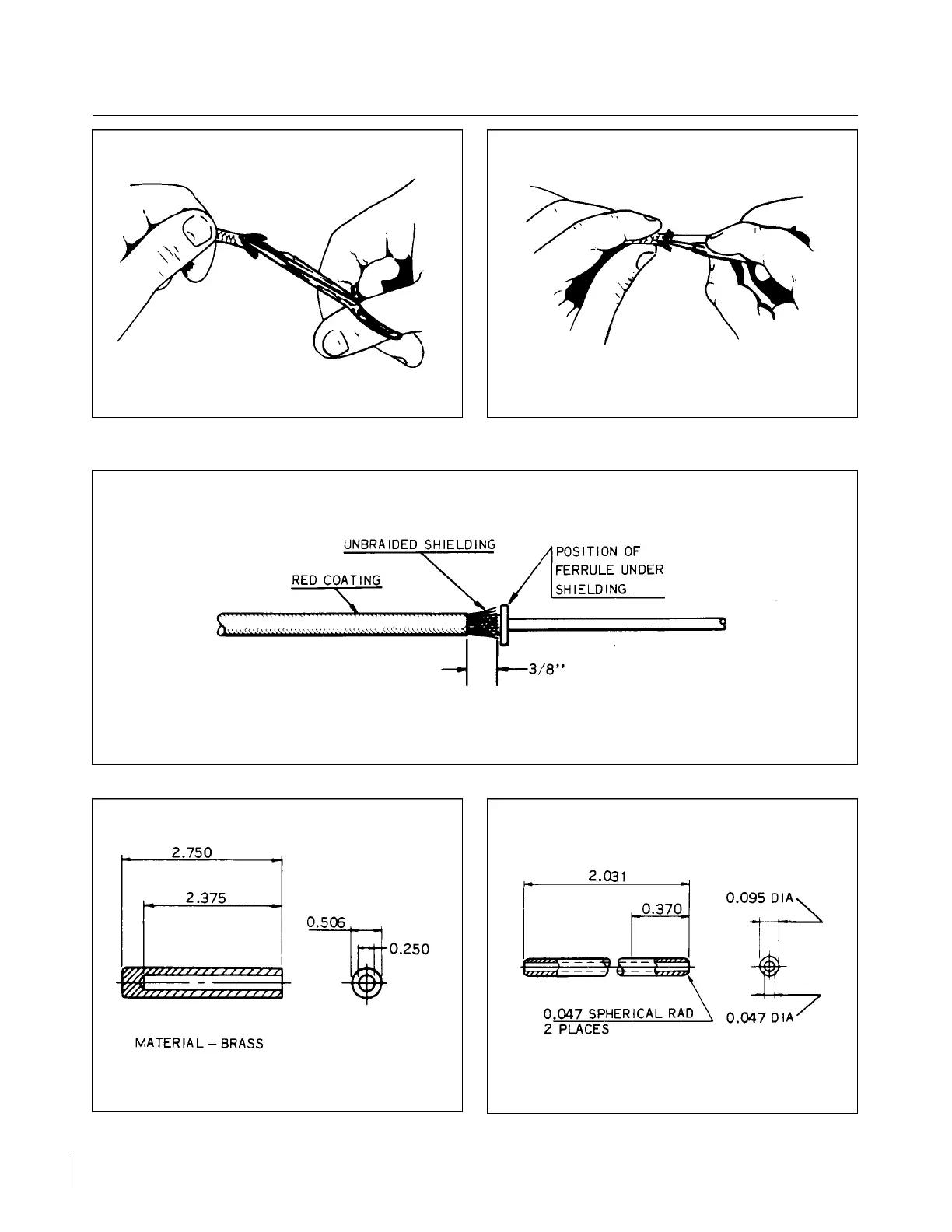

Figure 8A-20. Cutting Metallic Braid From End Figure 8A-21. Unbraiding Metallic Shielding
of Lead
Figure 8A-22. Forming Shielding Around Ferrule
Figure 8A-23. Ferrule Seating Tool Figure 8A-24. Needle
Revised: 8/31/77
2D21
CHEROKEE ARROW III SERVICE MANUAL
POWER PLANT - LYCOMING
