User Manual of WDAP-C1750
-16-
T-rail Mount
To mount the AP to a T-rail, you need to select a T-rail clip whose size must go with the width of the T-rail. Please
follow the instructions below and refer to Diagram 1 or 2.
Diagram 1: Tight-fit installation
1. Attach the T-rail clips to the mounting bracket using the included two short screws.
2. Attach the AP to the mounting bracket by aligning it with the grooves in the AP.
3. Secure the AP firmly in place using the thumb screw.
4. Hang the AP onto the T-rail on the ceiling with the assembled mounting bracket.
Diagram 2: Retention gap installation
1. Pre-assemble the T-rail clips and the plastic spacers to the mounting bracket using the included two long
screws.
2. Attach the AP to the mounting bracket by aligning the grooves in the AP.
3. Secure the AP firmly in place using the thumb screw.
4. Hang the AP onto the ceiling via T-rail with assembled mounting bracket.

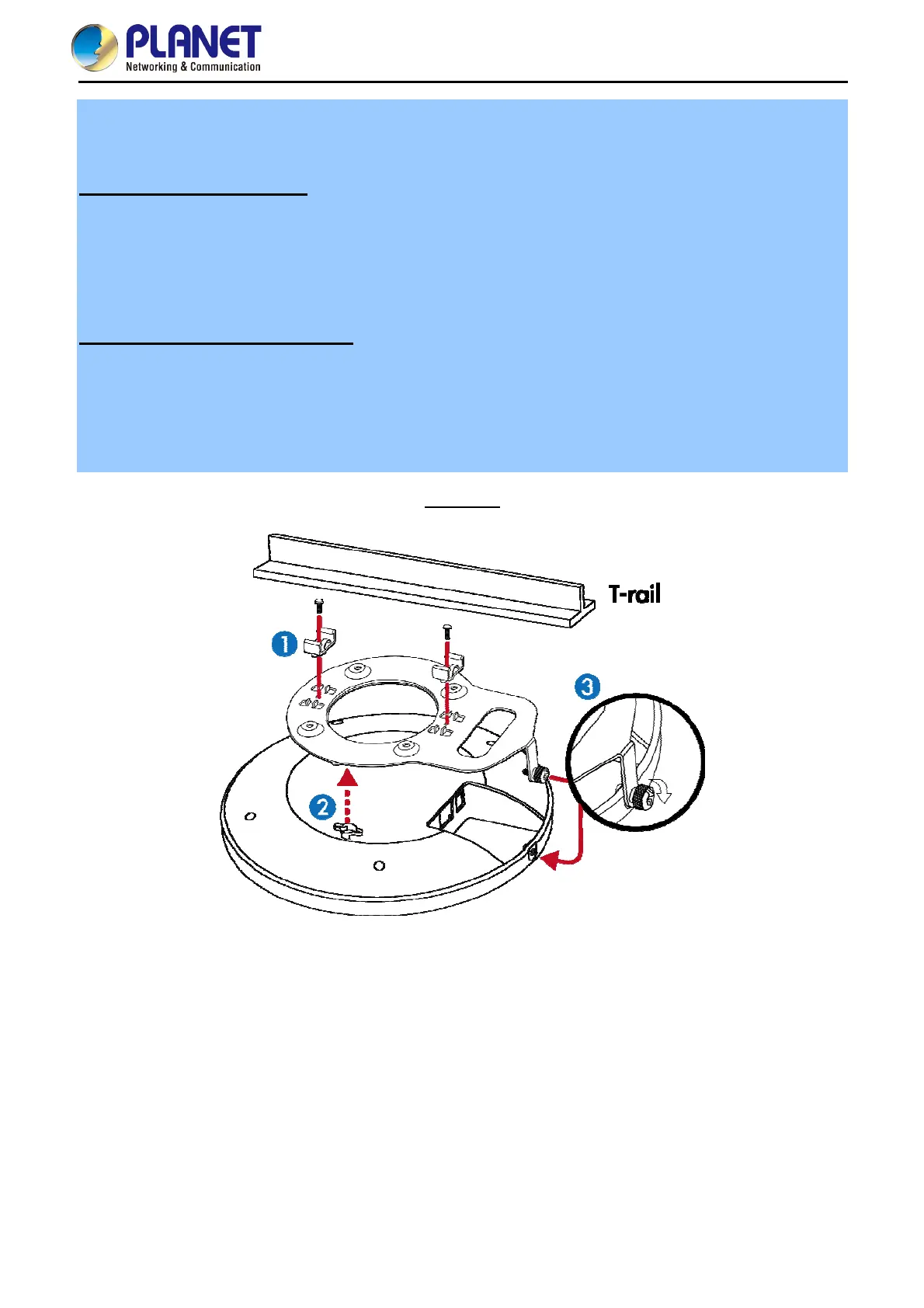

Diagram 1
Figure 3-3 WDAP-C1750 T-rail Mount Diagram 1
