-17-
Diagram 2

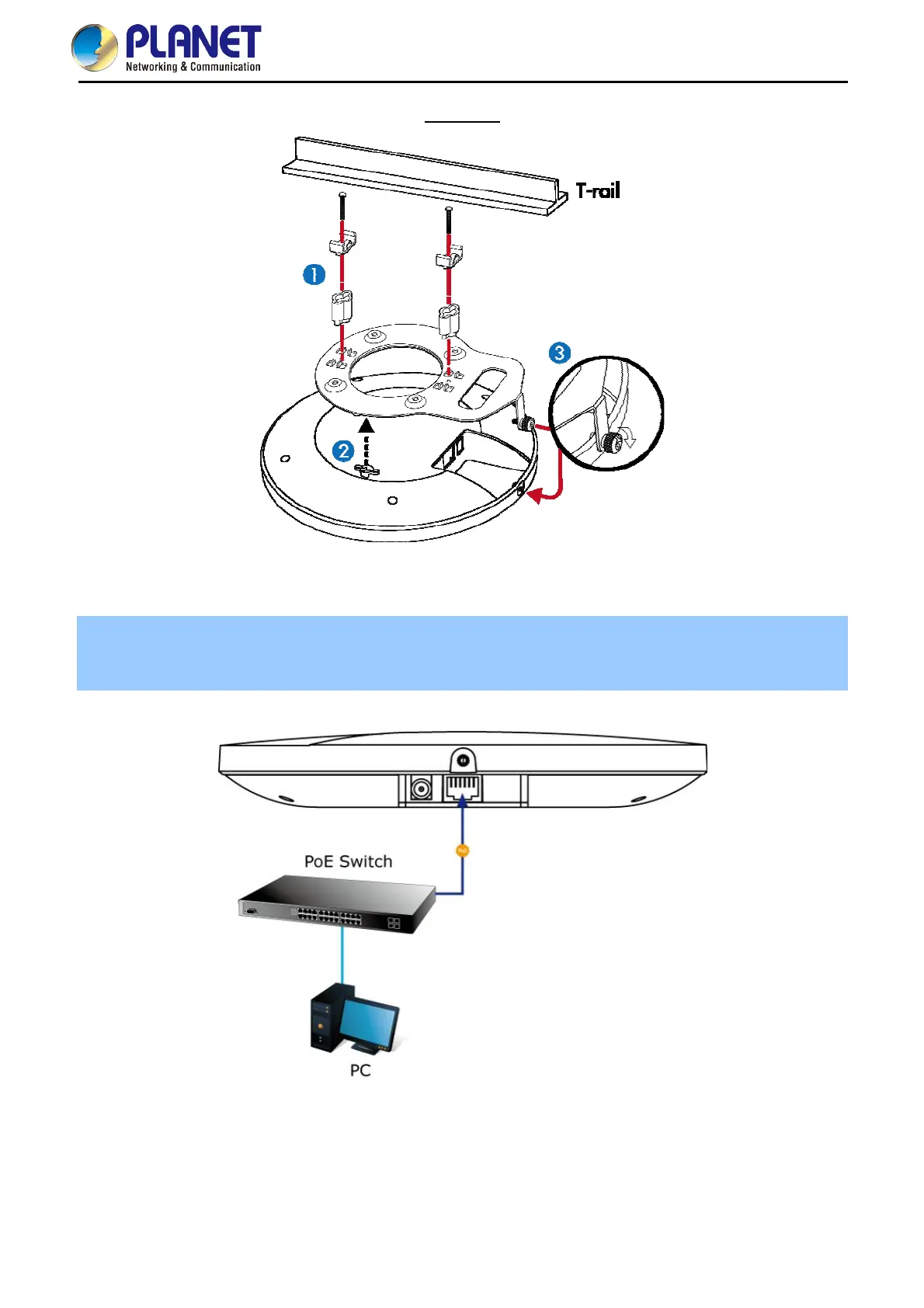

Figure 3-4 WDAP-C1750 T-rail Mount Diagram 2
Step 2.
Plug the RJ45 Ethernet cable into the PoE port of the WDAP-C1750 and the other end of Ethernet cable into the
PoE switch.
Figure 3-5 WDAP-C1750 Installation – connect to PoE switch
