26.3.2 Instrument console with hanging-tube instruments
The oil collector underneath the instrument console has to be checked
weekly and emptied when full.
You can check how full the oil collector is without removing it completely.

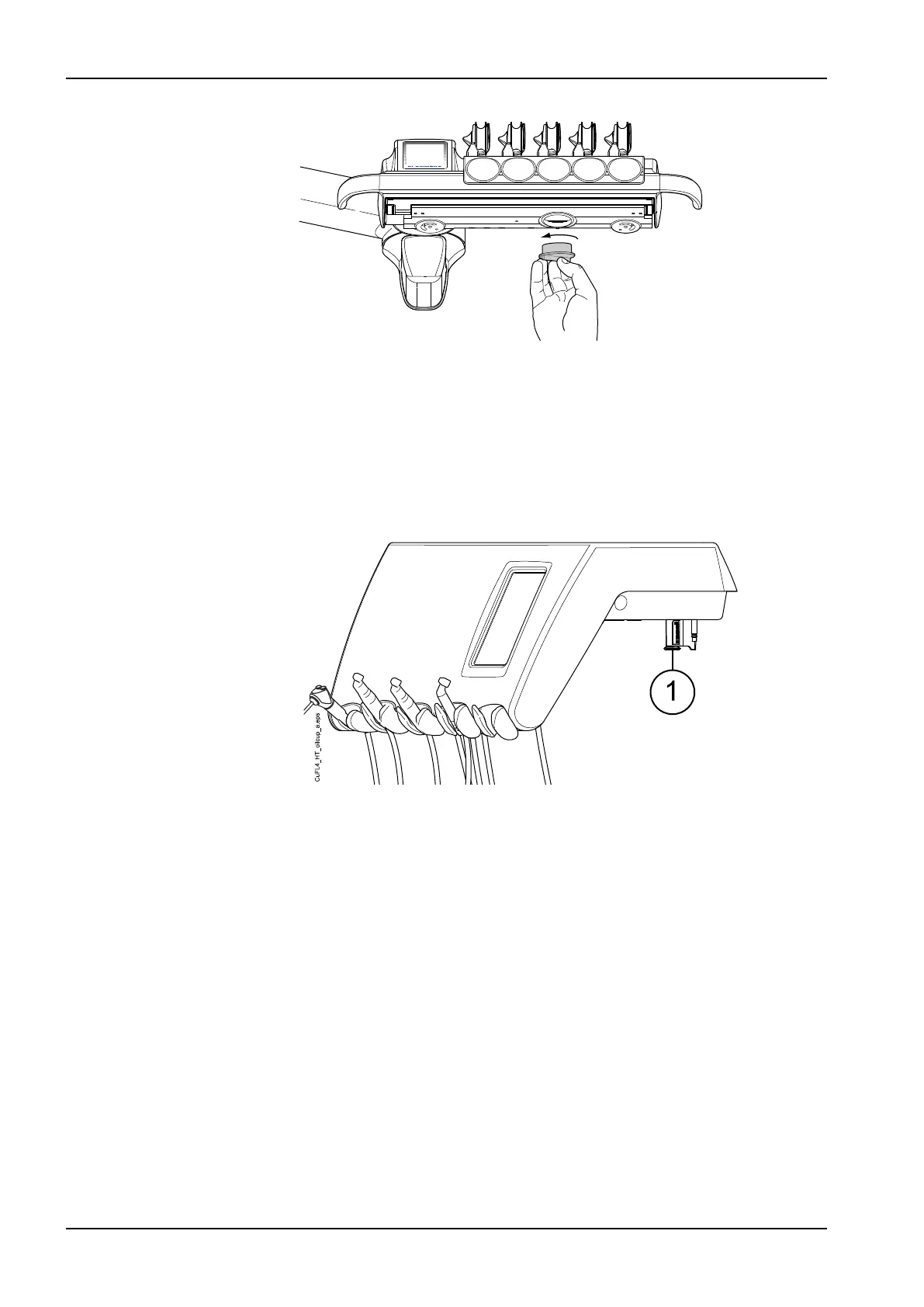

Pull the oil collector downward from the attachment knob (1) and check the
oil level in the narrower chamber. If it has started to fill, it is time to empty the
oil collector.
To remove the oil collector from the instrument console, unscrew the oil
collector attachment knob and carefully pull the collector out.
26 Maintenance
140 Planmeca Compact i User's manual
