8 Planmeca Compact i dental unit
8.1 Unit configuration
8.1.1 Over-the-patient delivery with balanced instrument arms

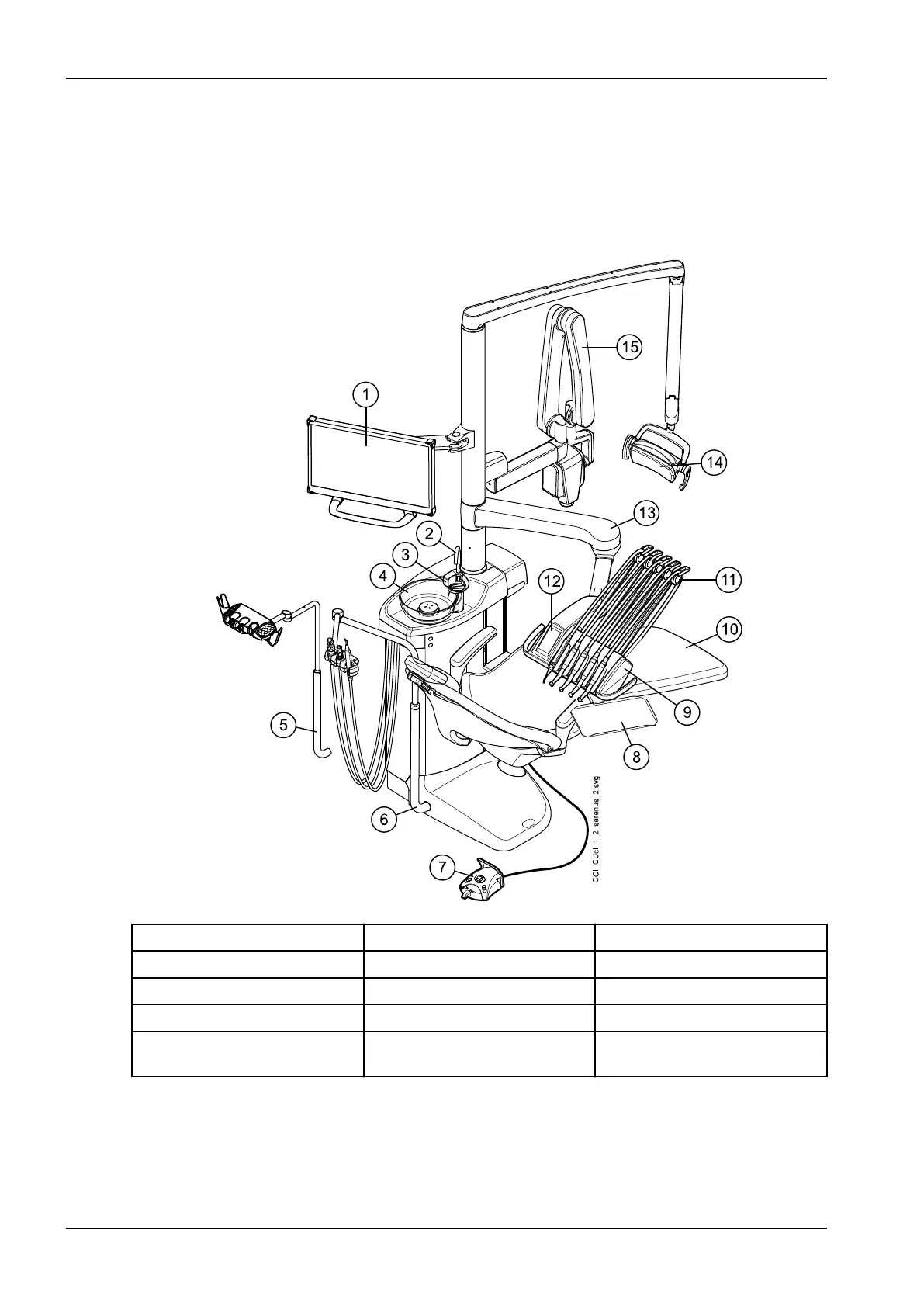

1. Monitor 6. Adjustable suction arm 11. Balanced instrument arms
2. Cup fill tube 7. Foot control 12. Control panel
3. Bowl rinse tube 8. Tray 13. OP delivery arm 520 mm
4. Bowl 9. Instrument console 14. Operating light
5. Adjustable suction arm with
Flexy-holder
10. Patient chair 15. ProX X-ray unit
This type of dental unit configuration has the option of a shorter OP delivery
arm (340 mm). The shortened console arm (1) allows easy access to the
patient chair if the instrument console is placed on the assistant's side during
patient change. The shortened console arm is especially well suited for
dental units without bowl.
