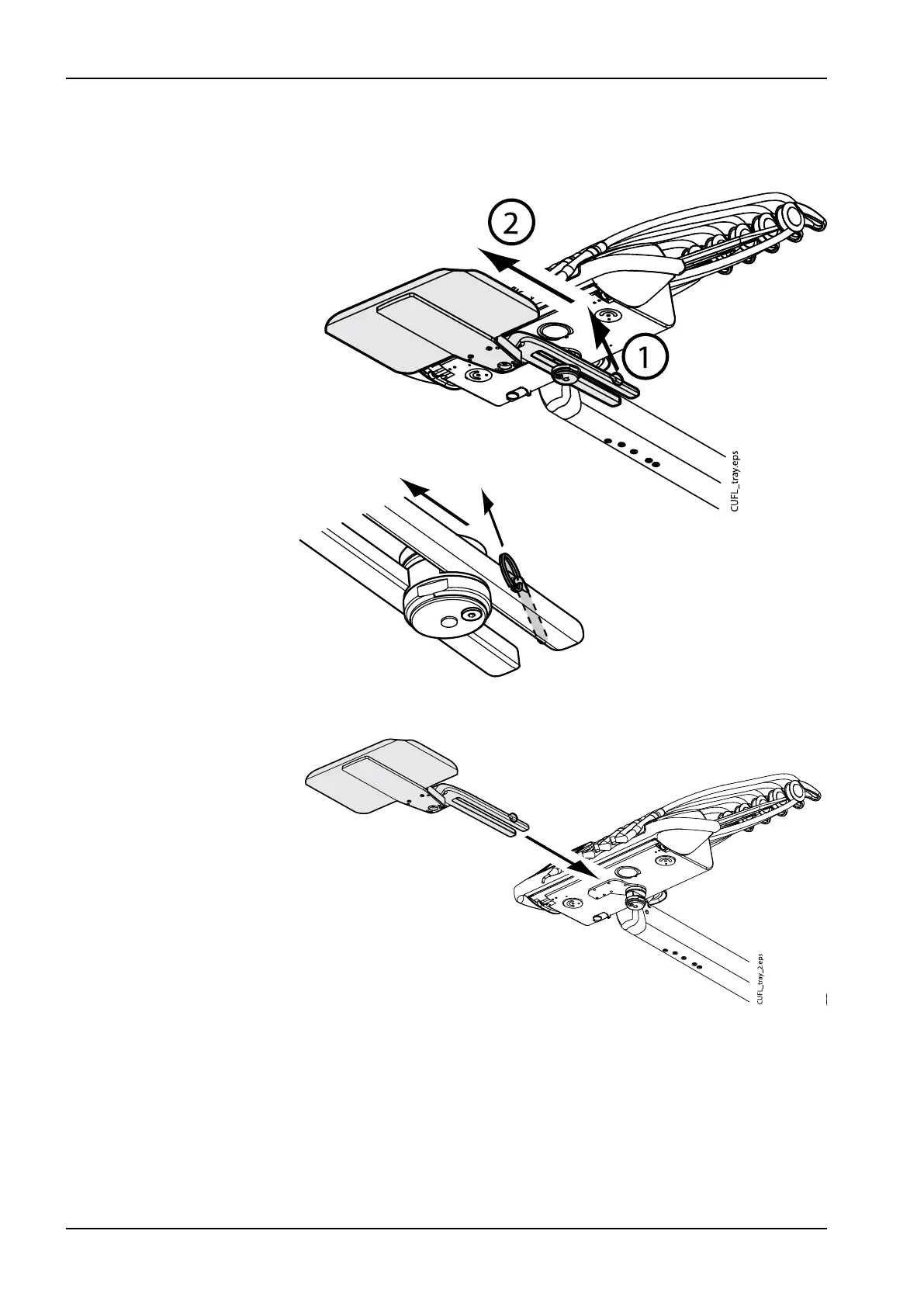

The tray mounting arm is attached to the instrument console with a quick-
connector. To remove the tray assembly from the instrument console, pull
the ring of the locking mechanism outwards (1) and then pull the tray arm
away from its position (2).
The mounting arm can be attached to the instrument console by pushing it to
its position.
10.5.2 Integrated tray table
The integrated tray table is available for OP-deliveries with hanging-tube
instruments. The maximum load on the tray table is 2 kilograms (4.4 lbs).
10 Instrument system
34 Planmeca Compact i User's manual
