13 Control panel

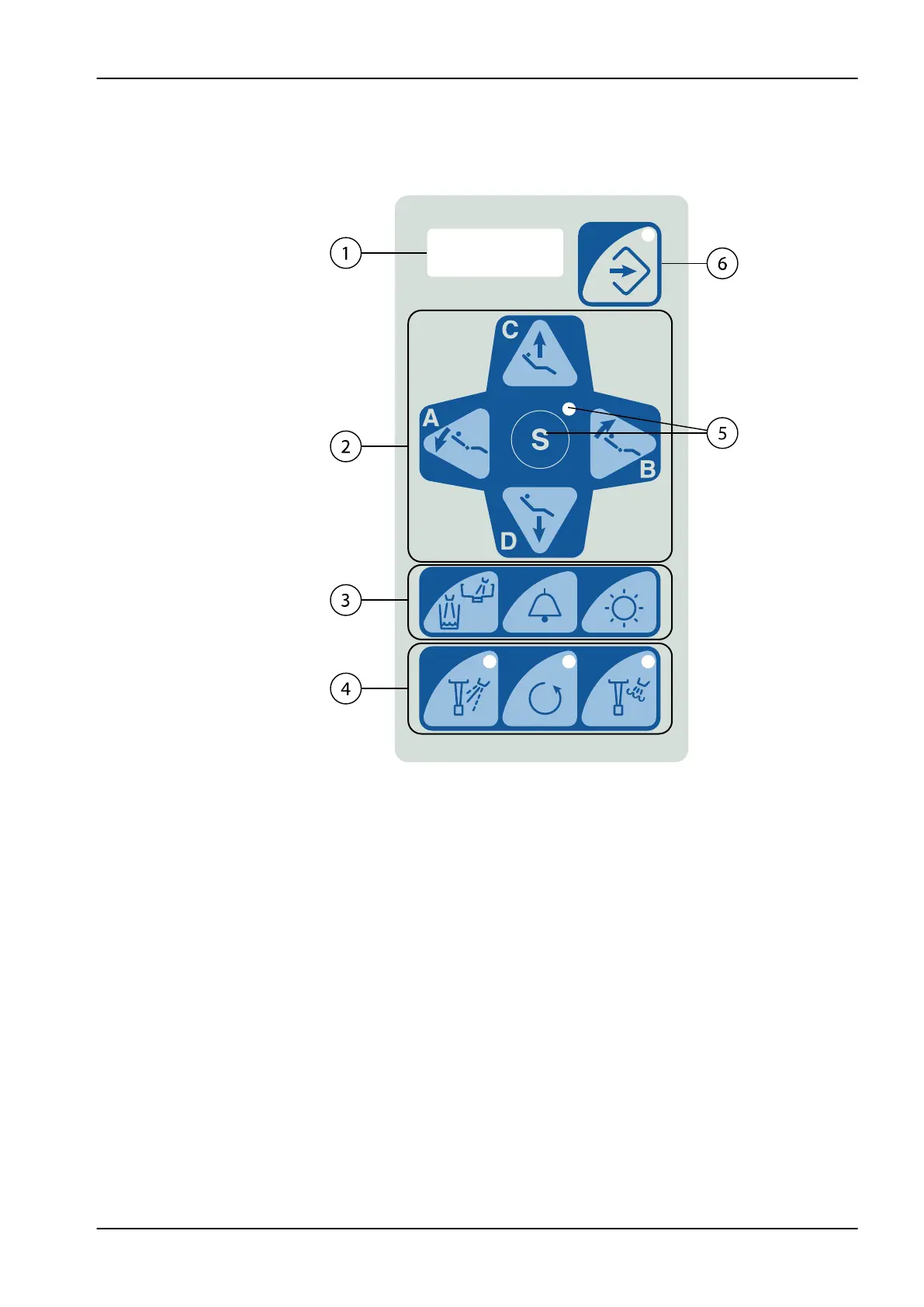

13.1 Control panel on instrument console
1. Display
2. Chair buttons
3. Unit buttons
4. Instrument buttons with indicator lights
5. Rinsing position button with indicator light
6. Program button with indicator light
The control panel is located on the instrument console. You can use it to
control and program the instruments, the dental unit, and the chair. You can
also start maintenance procedures from the control panel.
The instrument buttons are used to operate and program the settings of the
active instrument.
When the instrument is removed from its holder, the indicator light on the
instrument button displays the current operation status of the instrument.
In normal operation, the speed or power of the active instrument (percentage
of the maximum value) is shown on the small display on the control panel. If
the polymerisation light is the active instrument, the display shows the
current curing time.
13 Control panel
User's manual Planmeca Compact i 51
