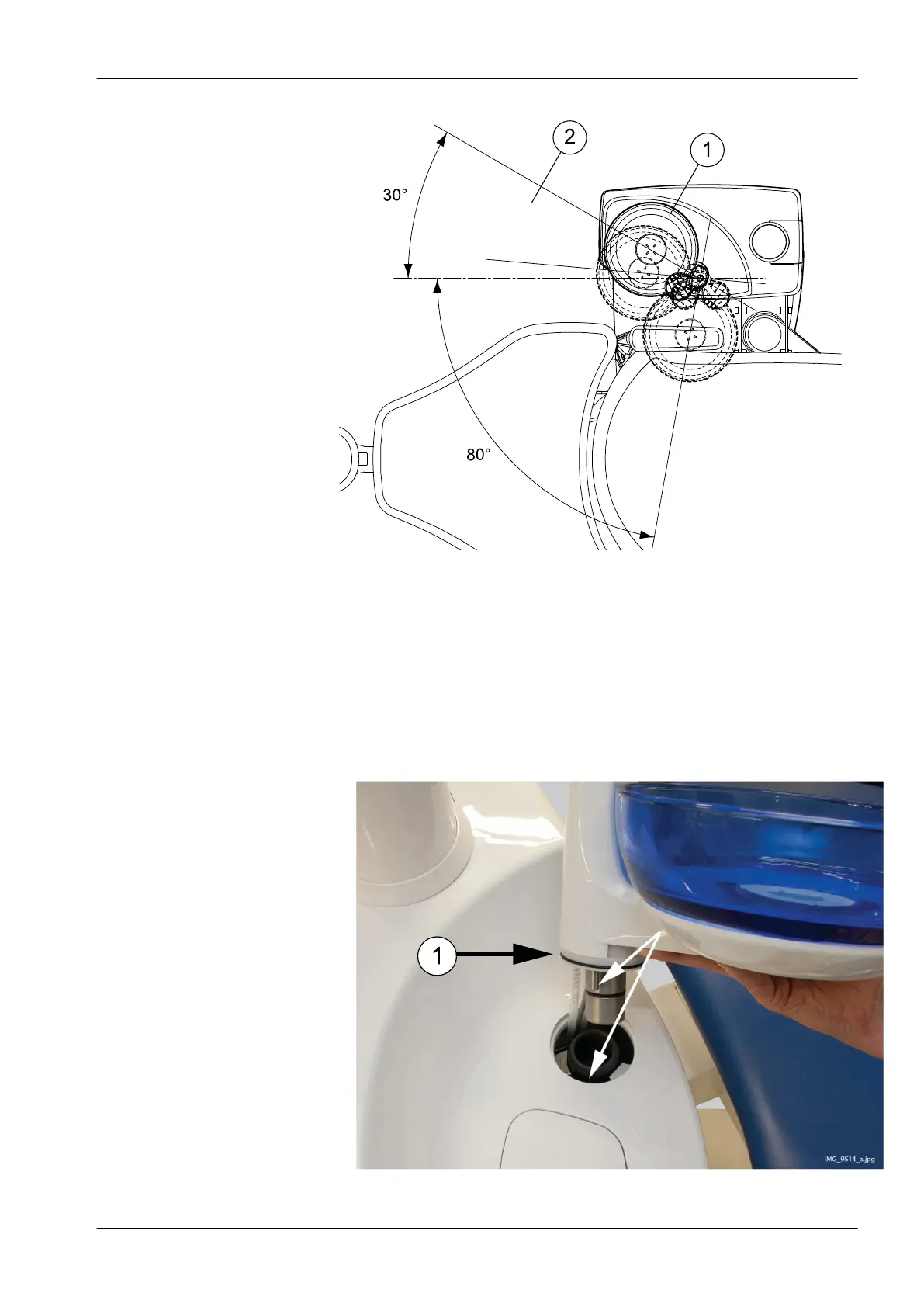

1. Home position
2. To avoid a collision between the patient chair and the bowl when driving
the chair upward, position the bowl within this area.
If the bowl assembly for some reason comes off the cuspidor, you can put it
back as follows:
1. Place the ring to the underside of the bowl assembly
This is shown by item 1 in the picture below.
2. Make sure that the peg goes into the slot as shown in the picture below.
8 Planmeca Compact i dental unit
User's manual Planmeca Compact i 21

Planmeca Compact i Classic v2 Specifications

General

Brand	Planmeca
Model	Compact i Classic v2
Category	Dental equipment
Language	English
