10 PARTS REPLACEMENT & REPAIR
Technical manual Planmeca ProX 65

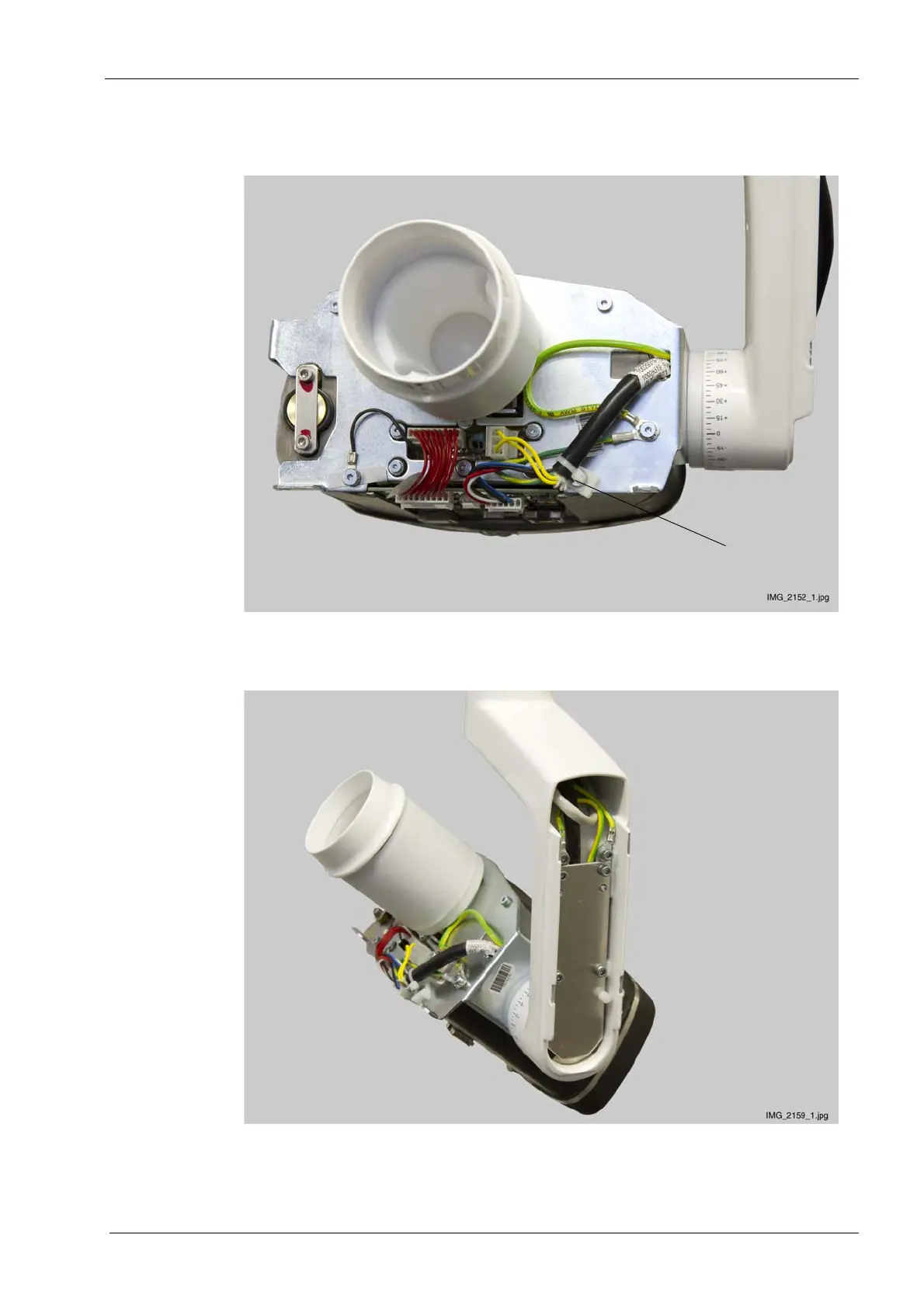

18.Attach the other tube head / grounding lead attachment screws using a 2.5 mm Allen key.
Adjust the arm cable length so that the cable sheath just reaches the cable tie. Secure the
cable to the frame with a cable tie.
19.Place the reset button to its position and attach the baffle plate with four attachment
screws using a 3 mm Allen key.
End of cable sheat
