10 PARTS REPLACEMENT & REPAIR
Technical manual Planmeca ProX 67

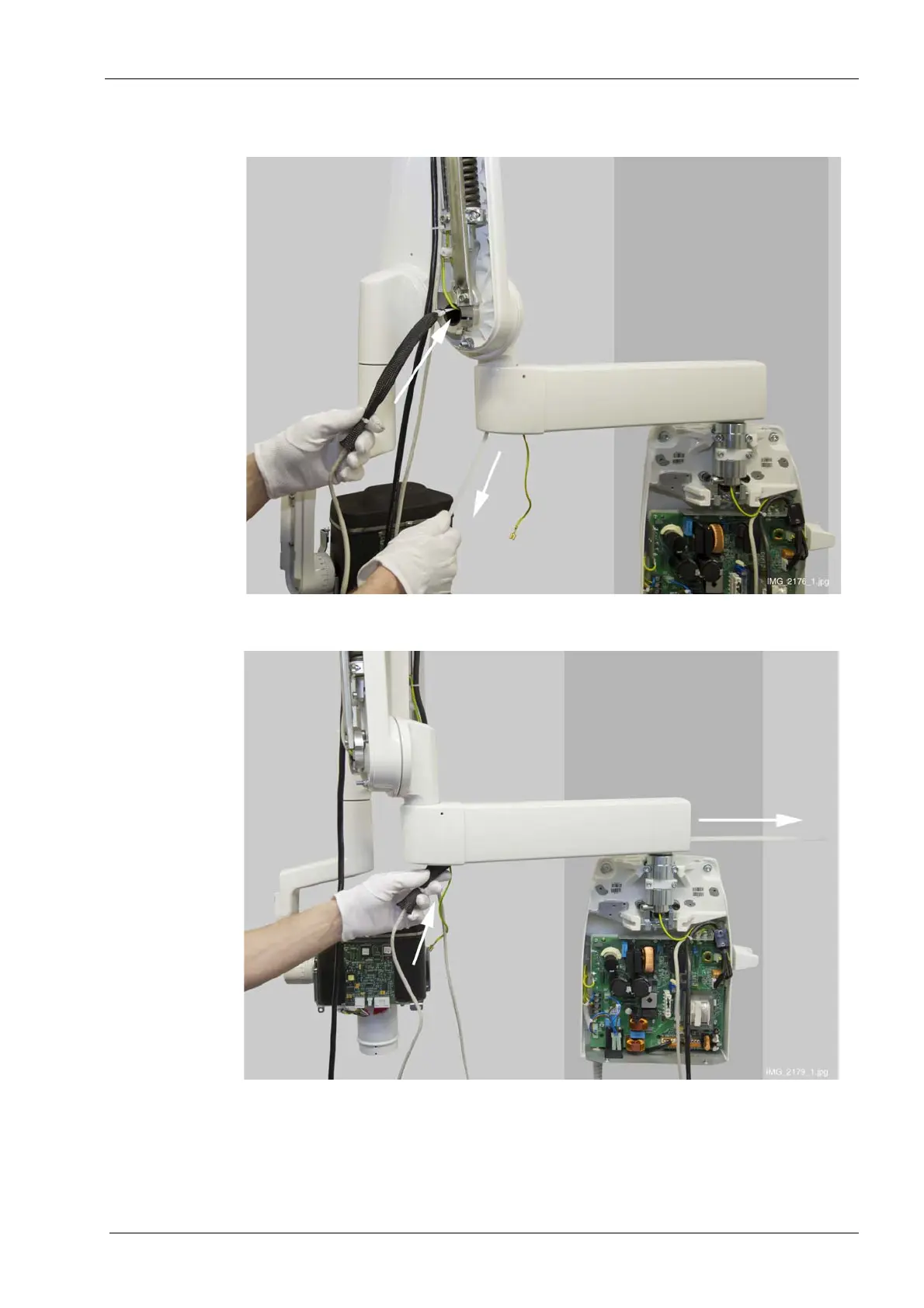

21.Attach the Ethernet cable to the drawing tool with a cable tie. Attach the cable from the
cable sheath. Pull the cable through the extension arm joint.
22.Route the Ethernet cable through the extension arm.
23.Route the Ethernet cable through the extension arm joint to the generator assembly.
24.Remove the Ethernet cable from the drawing tool and attach the arm cable to it so that the
cable tie is on the cable sheath. Route the arm cable through the extension arm and
through the extension arm joint to the generator assembly.

Planmeca ProX Specifications

General

Type	Intraoral X-ray
Tube current	7 mA
Imaging Technology	Digital
Focal spot	0.4 mm
X-ray generator	High-frequency
Power Requirements	100–240 V AC, 50/60 Hz
Tube voltage	60-70 kV
