7.28
FINAL DRIVE
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

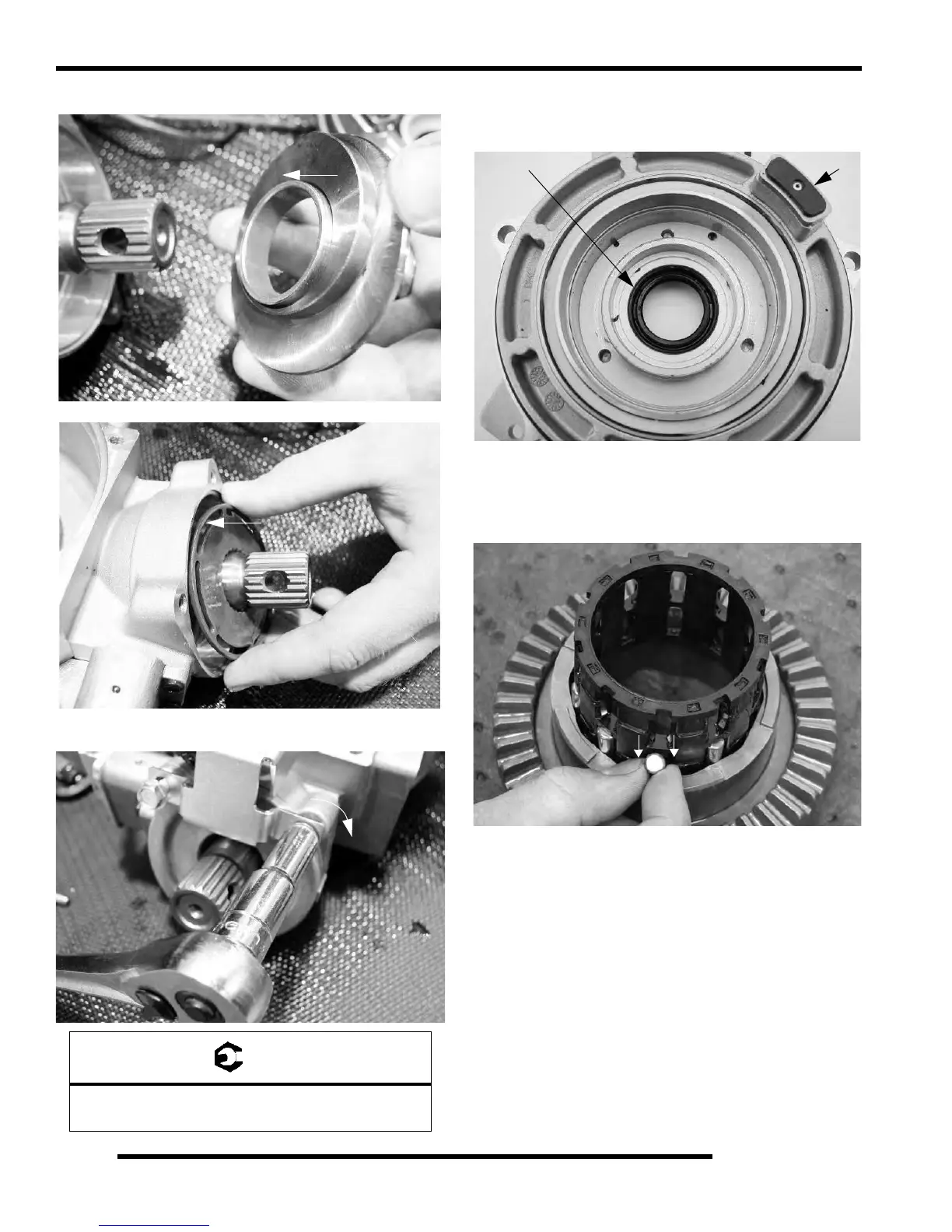

5. Install the eccentric cam assembly (1).
6. Install the splined armature plate (2).
7. Install the input shaft cover assembly, bolts and
bracket. Torque to spec
ification.
8. Install a new seal (1) in the o
uter cover plate
assembly. Install a new o-ring on the backlash pad (2)
stem .
NOTE: Ring gear backlash (2) is set at the factory.
No
adjustment is required, unless the front cover is
replaced or the back lash pad screw is removed.
9. Install the roll cage and rollers into the ring gear. Insert
th
e rollers as the roll cage is installed.
Input Cover Bolt Torque:
7-11 ft. lbs. (9.4-14.9 Nm)
