7.29
FINAL DRIVE
7
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

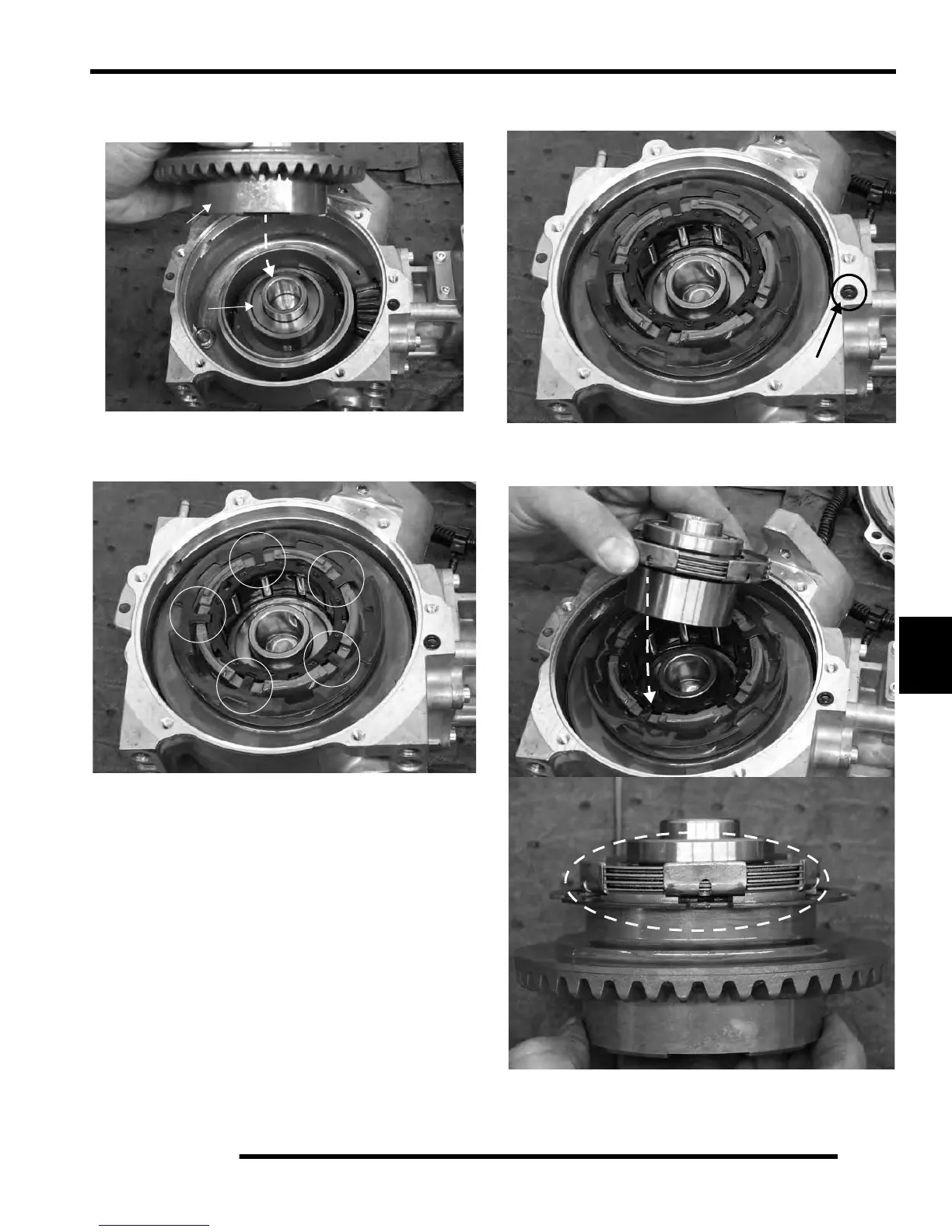

10. Install the output hub (1) and ring gear/roller cage
assembly (2).
11. Install the armature plate. Verify the armature plate
tab
s align with tab recesses in the roll cage and ring
gear.
12. Install new cover o-ring and ADC passage o-ring
(a
rrow) on the gear case.
13. Install the remaining output clutch assembly.
NOTE: Align output hub in the ring gear recesses.
during inst
allation.
3
2
1
1
2
1
2
