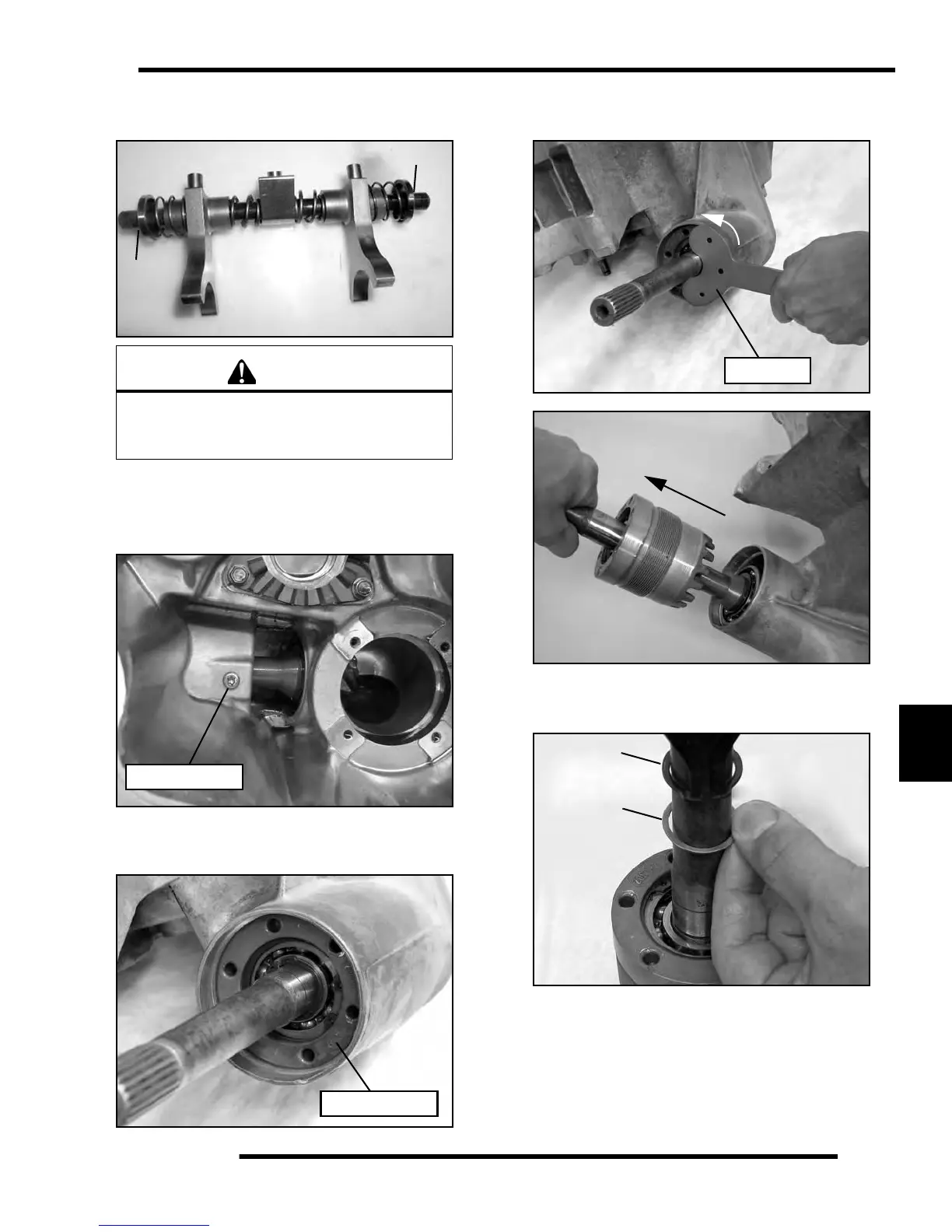

29. To disassemble the shift fork rail remove the snap ring
(W) from the end of the shift rail on either side.
Snorkel Shaft Removal / Disassembly
30. Using a T27 Torx driver, remove the snorkel tube
lo
cking screw located inside the gearcase.
31. Remove the seal from the snorkel shaft to access the
sno
rkel tube for removal.
32. Using the Snorkel Tool (PA-50231), loosen and
r
emove the snorkel tube and shaft assembly.
33. Remove the snap ring and shim from the snorkel
shaf
t.
34. Use an arbor press to remove the snorkel tube from
th
e snorkel shaft.
Use caution when disassembling the shift rail.
The compressed springs on the shift rail may
pop off causing eye or face injury.
