10.57
ELECTRICAL
10
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

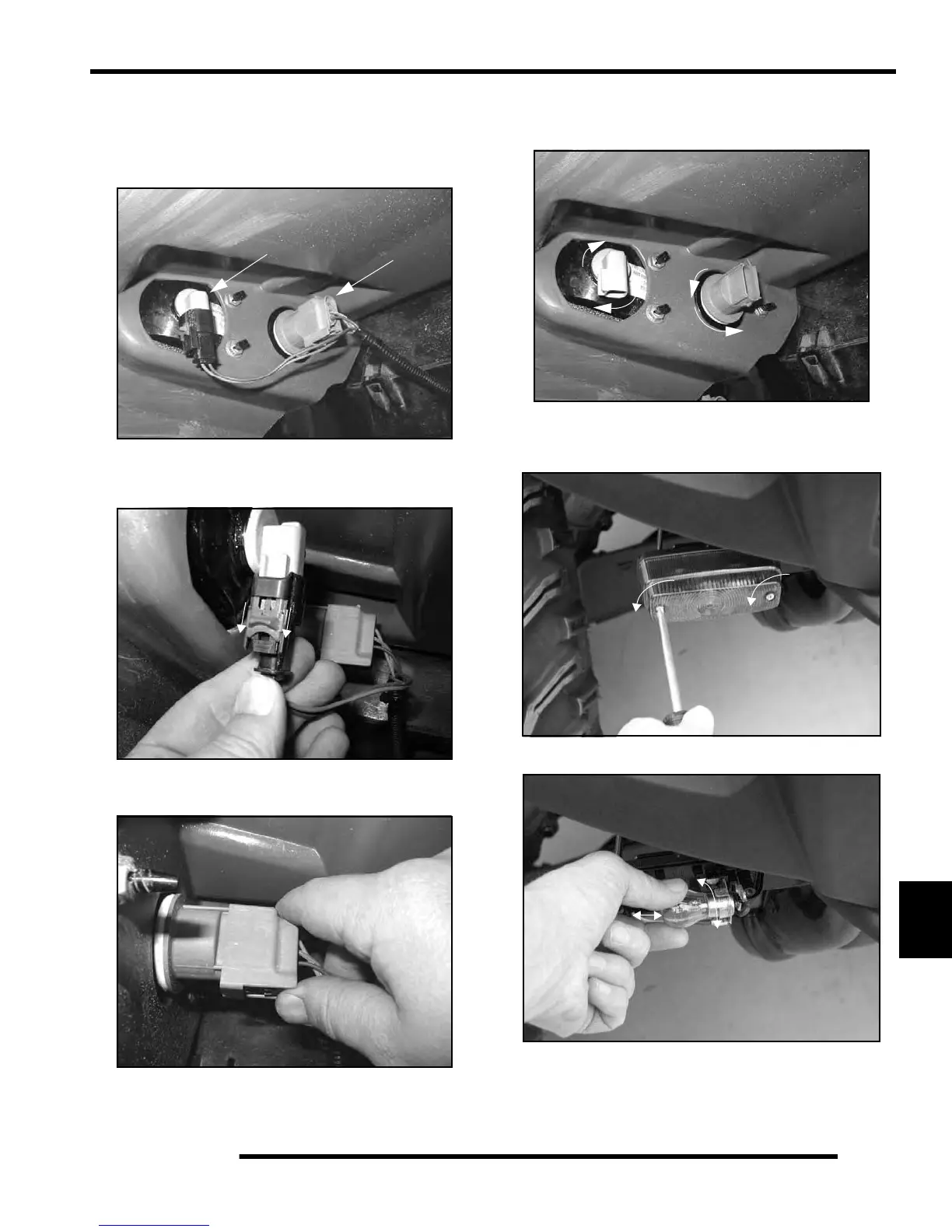

Rear Tail Lamp / Turn Signal Lamp
Replacement
The turn lamp (A) and the tail lamp (B) are both located in
the rear lamp housing.
1. To remove the turn lamp electrical connector (A), pull
d
own on the connector lock and pull the connector
from the bulb assembly.
2. To remove the tail lamp electrical connector (B), press
in
on the tab on the connector to unlock the connector
and pull the connector from the bulb assembly.
3. To exchange either of the bulbs, turn the housing 1/4
tu
rn counter-clockwise to remove and install. Turn the
housing clockwise to install.
Front Turn Signal Lamp Replacement
1. Remove the screws from the front of the turn signal.
2. Remove the orange lens cover. Twist the bulb out of
th
e socket and replace.
3. Test the new bulb. Install the orange lens cover.
4. Install the screws and tighten
sufficiently.
