10.58
ELECTRICAL
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

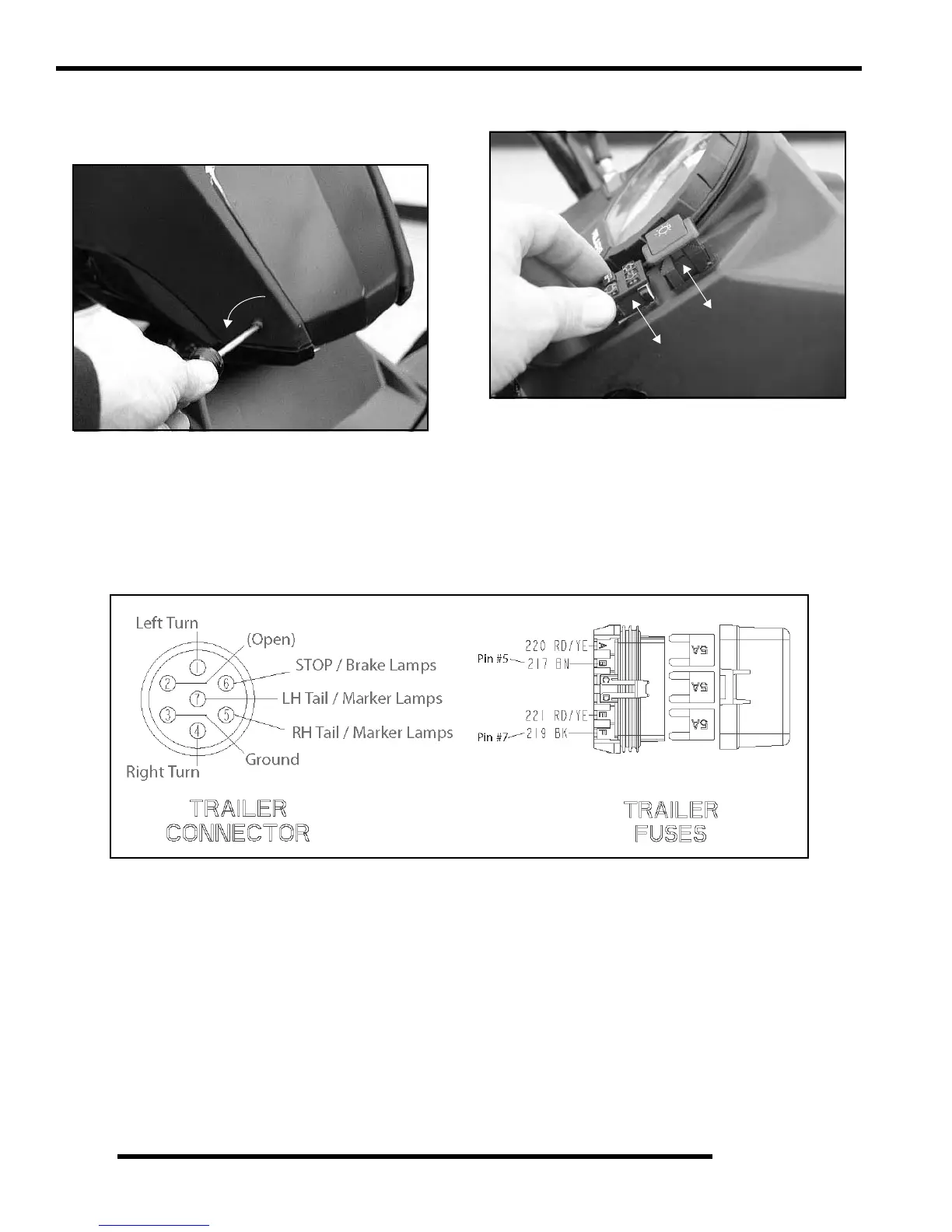

Pod Indicator Lamp / Switch Replacement
1. Remove the screws from the pod assembly and lift
the upper pod off.
2. Disconnect the wiring harness of the assembly you
w
ish to replace.
3. Press the retainer tabs using your fingers or a pliers
and
push the assembly out of the housing.
4. Insert a new assembly into the cor
responding opening
and install the harness.
5. Install the upper pod, screws
and tighten sufficiently.
Trailer Connector and Fuses
The Sportsman 500 EFI Tractor is equipped with an integrated trailer connector that is fuse-protected. Use the diagram
provided to troubleshoot any potential trailer wiring issues.
