SD300
POWER ELECTRONICS
194
DESCRIPTION OF PROGRAMMING PARAMETERS
Screen
Description
Default
value
Range
Function
Set on
RUN
AP.44
PID scale unit
x1
0 to 4
Adjusts the size to fit the unit selected at
AP.21.
OPT.
DESCR.
0
x100
1
x10
2
x1
3
x0.1
4
x0.01
YES
AP.45
Proportional
gain 2
100.00%
0.0 to
100.0%
Set the value of the proportional gain
controller 2. This value should be increased
whenever a greater control response is
needed. Note: Increasing too much this
value can cause a greater system instability.
NO

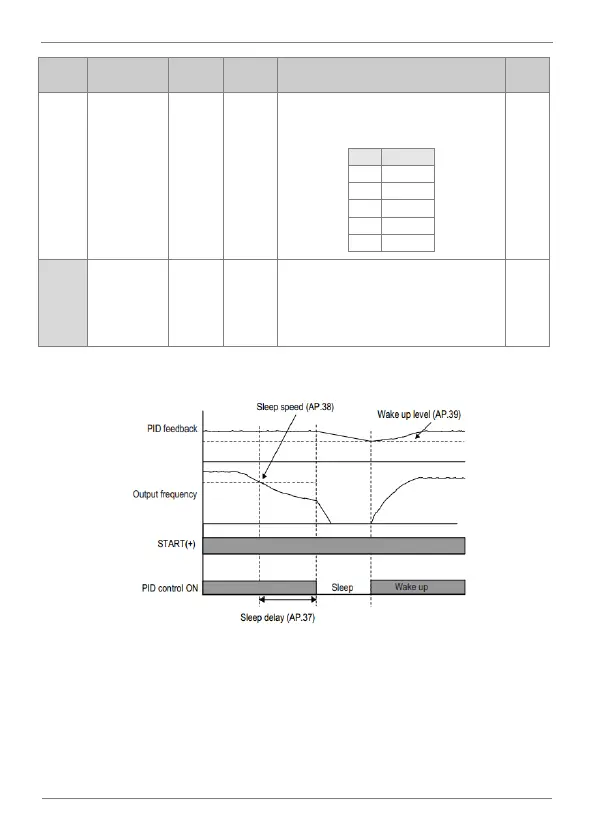

The following figure shows the PID operation sleep mode setting details:
