Frames 4, 5 & 6:

In order to install the Flange Option:

• Fasten both sides of the flange to the base of the drive using

the included M4 bolts with a tightening torque between 0.2

and 0.6 (Nm) and M5 bolts with a tightening torque between

0.4 and 1 (Nm).

• Use the remaining bolts to fix the flange as shown below.

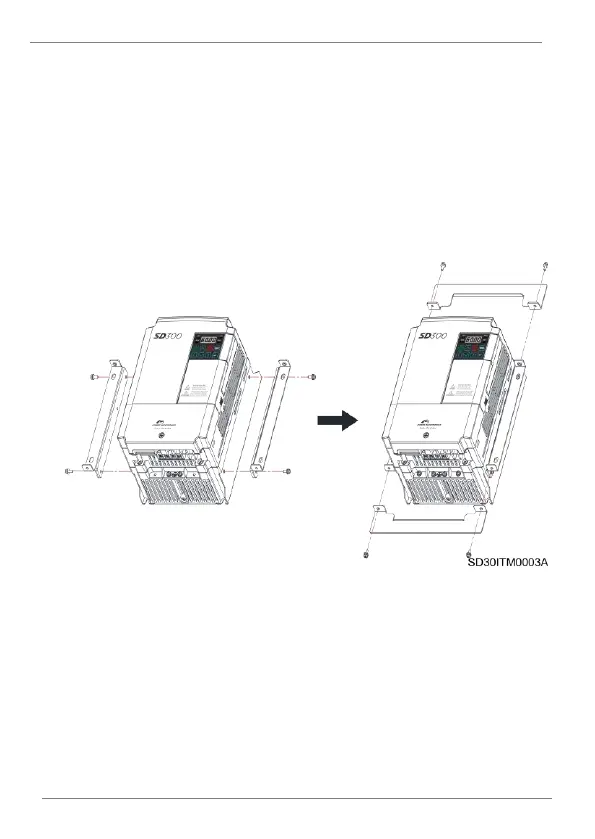

Frames 4, 5 and 6 flange option kit mounting
