Power Electronics SD300 Series User Manual

POWER ELECTRONICS
SD300
ACCESSORIES
281
Frame 2N:

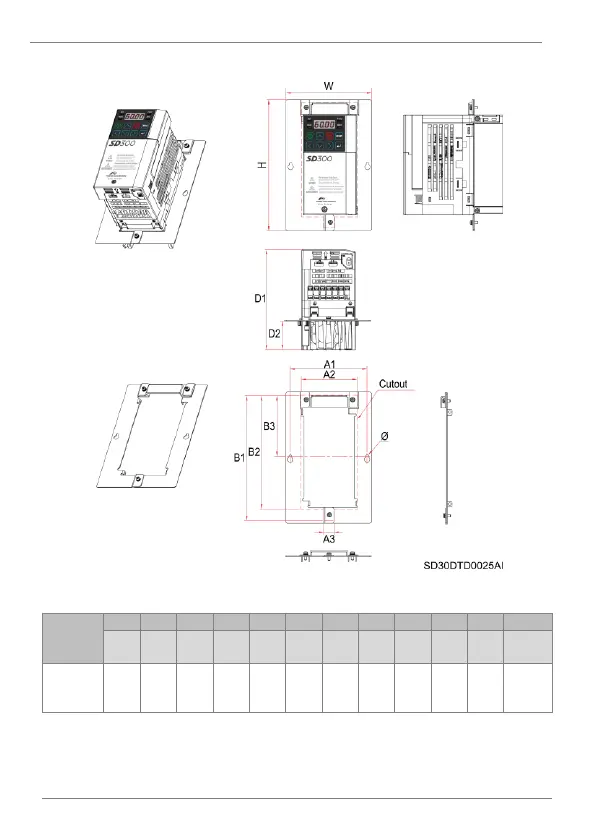

Frame 2N flange option kit dimensions
Model
W
H
D1
D2
A1
A2
A3
B1
B2
B3
Ø
Weight*
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
kg
(lb)
SD300312
SD300622
SD300342
110
(4.33)
168
(6.61)
128
(5.04)
36.8
(1.45)
98
(3.86)
72
(2.83)
14
(0.55)
159.8
(6.29)
145.4
(5.72)
77.9
(3.07)
3.5
(0.14)
1.1
(2.43)
*Total weight of the drive with the flange installed
