Power Electronics SD300 Series User Manual

SD300
POWER ELECTRONICS
282
ACCESSORIES
Frames 3N & 4N:

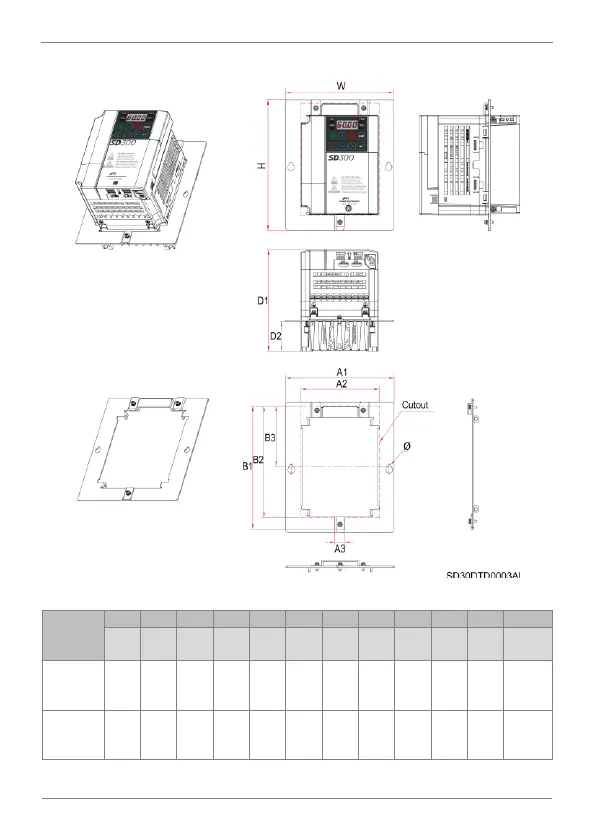

Frames 3N & 4N flange option kit dimensions
Model
W
H
D1
D2
A1
A2
A3
B1
B2
B3
Ø
Weight*
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
kg
(lb)
SD300612
SD300922
SD300542
140
(5.51)
168
(6.61)
130
(5.12)
38.2
(1.50)
140
(5.51)
102
(4.02)
14
(0.55)
159.8
(6.29)
144.4
(5.69)
77.9
(3.07)
4.5
(0.18)
1.6
(3.53)
SD300912
SD301222
SD300742
140
(5.51)
168
(6.61)
145
(5.71)
53.2
(2.09)
140
(5.51)
102
(4.02)
14
(0.55)
159.8
(6.29)
144.4
(5.69)
77.9
(3.07)
4.5
(0.18)
1.8
(3.97)
*Total weight of the drive with the flange installed
